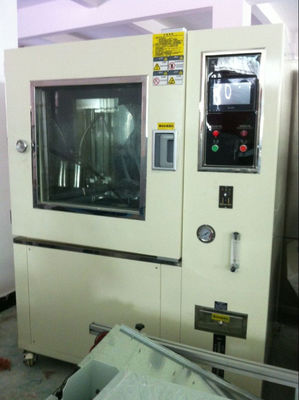

Touch Screen Water Spray Test Chamber For External Lighting / Signal Device
| MOQ: | 1 unit |
| Price: | Negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | Western Union, T/T, MoneyGram |
| Supply Capacity: | 10 pcs/ month |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
CE, calibration certificate
Model Number
SL-E05
Skyline:
Raining Testing Chamber / Salt Spray Test Equipment
Spray Ring Radius:
235 (mm)
Water Pipe Diameter:
Φ16mm
Nozzle Diameter:
Φ0.4mm
Aperture Spacing 50mm:
Aperture Spacing 50mm
Standard:
CFW-820, BS 6387 IPX4/IEC 529
Highlight:
environmental testing equipment
,uv accelerated weathering tester
Product Description
Enviromental Test Chamer Touch Screen Raining Testing Chamber
Application of Environment Test Chamber
Mainly used in electronic electrician, aerospace, military scientific research institutions, such as external lighting, signal device and vehicle lamps shell protection test
Standard
IPX4/IEC 529 CFW-820, BS 6387
Main parameter of Environment Test Chamber
| Spray ring radius | 235 (mm) |
| Water pipe diameter | Φ16mm |
| Nozzle diameter | Φ0.4mm |
| Aperture spacing | 50mm |
Swing swing ± 45 degrees, ± 60 degrees, ± 90 degrees, ± 180 degrees (theoretical value)
Test bench speed 1r / min can also be no section speed (optional)
The controller imports the frequency modulation frequency changer
Time Controller Import Microcomputer Time Programmable Integrated Controller (Admiralty Moeller)
Water pressure control flowmeter
Observation area Large area visualized tempered glass door
Water supply system storage tank, booster pump
Safety protection leakage, short circuit, motor overheating
