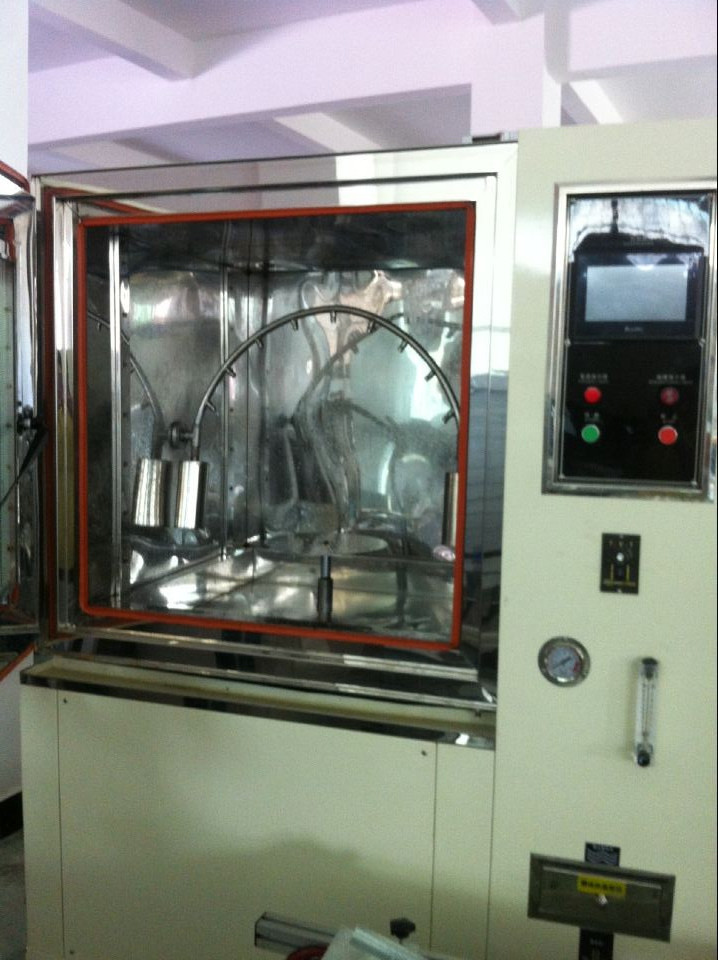

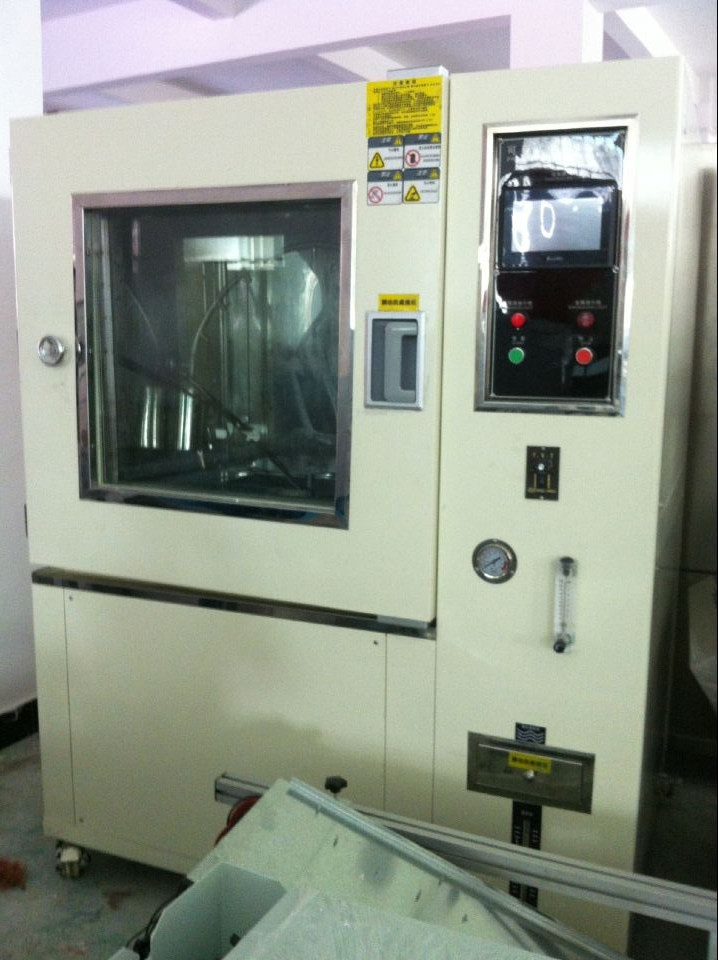

Touch Screen Water Spray Test Chamber For External Lighting / Signal Device

Place of Origin China
Brand Name SKYLINE
Certification CE, calibration certificate
Model Number SL-E05
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details plywood case
Delivery Time 15 working days
Payment Terms Western Union, T/T,
Supply Ability 10 pcs/ month
Product Details
Skyline: Raining Testing Chamber / Salt Spray Test Equipment Spray Ring Radius: 235 (mm)
Water Pipe Diameter: Φ16mm Nozzle Diameter: Φ0.4mm
Aperture Spacing 50mm: Aperture Spacing 50mm Standard: CFW-820, BS 6387 IPX4/IEC 529
Highlight:

environmental testing equipment

,

uv accelerated weathering tester
Product Description

Enviromental Test Chamer Touch Screen Raining Testing Chamber



Application of Environment Test Chamber



Mainly used in electronic electrician, aerospace, military scientific research institutions, such as external lighting, signal device and vehicle lamps shell protection test



Standard

IPX4/IEC 529  CFW-820, BS 6387


Main parameter of Environment Test Chamber



 Spray ring radius  235 (mm)
 Water pipe diameter  Φ16mm
 Nozzle diameter  Φ0.4mm
 Aperture spacing  50mm



Swing swing ± 45 degrees, ± 60 degrees, ± 90 degrees, ± 180 degrees (theoretical value)
Test bench speed 1r / min can also be no section speed (optional)
The controller imports the frequency modulation frequency changer
Time Controller Import Microcomputer Time Programmable Integrated Controller (Admiralty Moeller)
Water pressure control flowmeter
Observation area Large area visualized tempered glass door
Water supply system storage tank, booster pump
Safety protection leakage, short circuit, motor overheating



Touch Screen Water Spray Test Chamber For External Lighting / Signal Device
