EN71-8 Toy Testing Equipment Swing Suspension Connector Durability Tester

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-S85

Payment & Shipping Terms

Minimum Order Quantity: 1 UNIT

Price: Negoitable

Packaging Details: plywood case

Delivery Time: 30 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1 unit / month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                stability test chamber, swing durability tester


SKYLINE:	Suspension Connector Durability Tester	Standard:	ISO8124-4 6.8 EN71-8
Load:	6.75kg,13.5kg,18.5kg,30kg	Test Speed:	1~60r/min
Cycles:	180000	Material:	Steel

SKYLINE:	Suspension Connector Durability Tester
Standard:	ISO8124-4 6.8 EN71-8
Load:	6.75kg,13.5kg,18.5kg,30kg
Test Speed:	1~60r/min
Cycles:	180000
Material:	Steel

Product Description

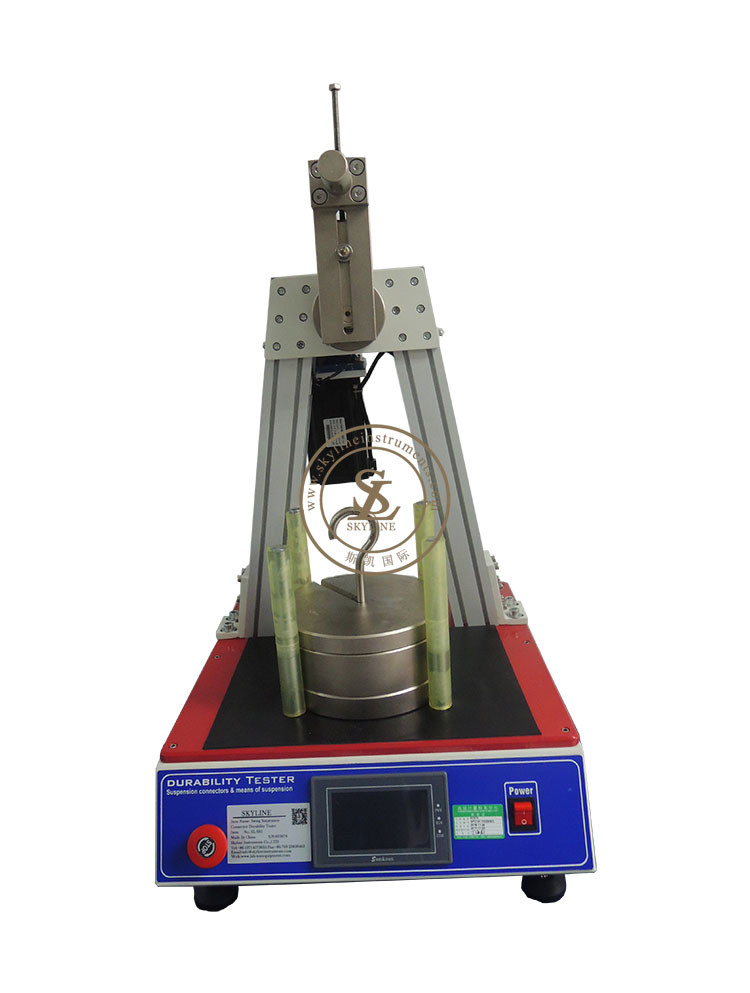

ISO8124-4 Swing Suspension Connector Durability Tester

Application

Suitable for evaluating the durability of the suspension mechanism used for swings in children's amusement facilities.
Principle: After simulating the situation in normal use, after loading the suspension mechanism with a certain weight, after a certain number of cycles, check whether its performance meets the safety requirements
Conform to the standard: ISO 8124.

Technical parameters

Load	6.75kg, 13.5kg, 18.5kg, 30kg cumulative
Load loading method	hanging
Fixed rod eccentricity	100mm ~ 220mm
Swing angle	± 5 ° ~ ± 45 ° (10 ° ~ 90 °) can be set
Number of suspension mechanisms	one
Test speed	1 ~ 60r / min can be set
Count	0 ~ 999 999 can be set

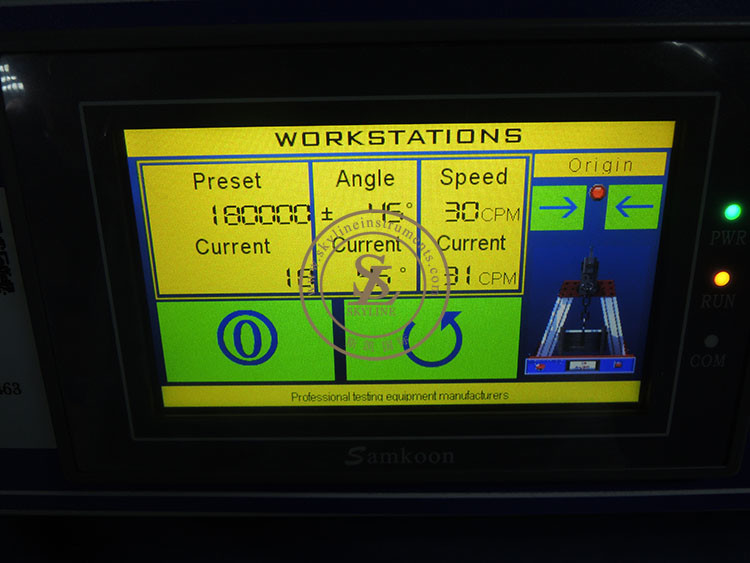

Control mode	PLC + touch screen
Volume (WxDxH)	40x52x78cm
Weight (approx)	≈75Kg
Power supply	1∮ AC 220V 50Hz 3A

Procedure

Attach each type of swing element to its support member in accordance with the installation instructions, and
mount in a suitable test fixture.
Flexible components of the swing element may be replaced by rigid components of at least the same size and
mass, as long as the alternate components do not affect the moving parts of the swing element.
Secure the appropriate test mass to each occupant position to be tested.
Oscillate this suspended unit through an arc with an included angle as specified for a total of
180 000 cycles (forward and backward).
Determine whether any loosening or structural failure of the suspension connector occurs.

Suspension Connector Durability Tester.pdf

EN71-8 Toy Testing Equipment Swing Suspension Connector Durability Tester 0 Contoller PLC
