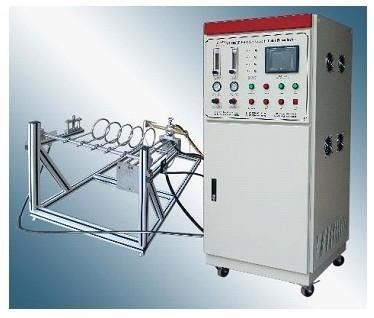

IEC60331-11 Wire & Cable Resistance To Fire Mechanical Shock Tester / Flammability Test Chamber

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-7606Z

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiated

Packaging Details: plywood case

Delivery Time: 10 work days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 1 unit/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                flammability test chamber, flammability test apparatus


Standards:	IEC60331-11, IEC60331-21, IEC 60331-1etc.	Size:	W25D25 L1000mm
Shock Speed:	30±2s/T	Shock Bar Length:	600mm

Standards:	IEC60331-11, IEC60331-21, IEC 60331-1etc.
Size:	W25D25 L1000mm
Shock Speed:	30±2s/T
Shock Bar Length:	600mm

Product Description

Wire & Cable Resistance To Fire Mechanical Shock Tester / Flammability Test Chamber

Application

Used for testing wires & cables with the rated voltage through the different refractory level, detect the fire resistance of the insulation, check insulation whether breakdown and circuit’s integrality.

Standards

According to IEC60331-11, IEC60331-21, IEC 60331-1, IEC 60331-2, EN50200, EN50362, BS6387: 1994, BS7846, BS8431-1, BS8434-2, BS8491 etc.

Main parameters

Shock testing wall	Material of resistance to fire and hot composition board and the size is L900W300D9mm,weight:about 10±2kg including frame
Metal frame	2 stainless steel tube, one for up and down, size: W25D25 L1000mm
Testing power	output voltage continuously adjustable during AC0-100V,current: AC0.01-0.70A, four circuits independent continuously adjustable
Heat withstand pip	φ3.0*L300mm, thermocouple fixed onto the end of heat withstand pip to test temperature
Shock speed	30±2s/T , shock at the level of 60 °
Timer	0.01～99.99S/M/H setting continuously
Ribbon burner	nozzle length: 500mm;width: 15mm, contain the Venturi mixer
Testing temperature	650～950℃
Burning gas	propane or other gas
Specimen size	Length about 400mm
Temperature sensor	ø 2.0 mm Platiniridium temperature sensor , 8～10mm from the bottom of the worktable
Shock bar	ø25mm, cylindrical, length: 600mm

What is the difference between wire and cable?

Difference between Wire and Cable 1 Twisted pair cable – A twisted pair cable has two cables that are twisted across each other. Twisting can avoid noise... 2 Multi-conductor cable – Multi conductor cable has two or more conductors that are insulated from each other.
