IEC60331-11 Wire & Cable Resistance To Fire Mechanical Shock Tester / Flammability Test Chamber

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-7606Z
Minimum Order Quantity 1 unit
Price negotiated
Packaging Details plywood case
Delivery Time 10 work days
Payment Terms T/T, L/C, Western Union,
Supply Ability 1 unit/ month
Product Details
Standards: IEC60331-11, IEC60331-21, IEC 60331-1etc. Size: W25*D25* L1000mm
Shock Speed: 30±2s/T Shock Bar Length: 600mm
Highlight:

flammability test chamber

,

flammability test apparatus
Product Description

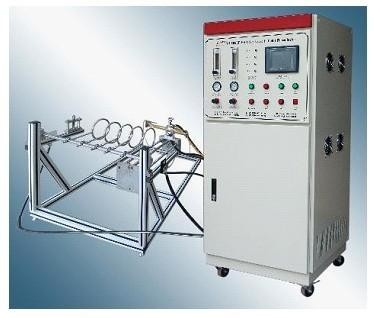

Wire & Cable Resistance To Fire Mechanical Shock Tester / Flammability Test Chamber


Application
Used for testing wires & cables with the rated voltage through the different refractory level, detect the fire resistance of the insulation, check insulation whether breakdown and circuit’s integrality.

Standards
According to IEC60331-11, IEC60331-21, IEC 60331-1, IEC 60331-2, EN50200, EN50362, BS6387: 1994, BS7846, BS8431-1, BS8434-2, BS8491 etc.

Main parameters
 Shock testing wall  Material of resistance to fire and hot composition board and the size is L900*W300*D9mm,weight:about 10±2kg including frame
 Metal frame  2 stainless steel tube, one for up and down, size: W25*D25* L1000mm
 Testing power  output voltage continuously adjustable during AC0-100V,current: AC0.01-0.70A, four circuits independent continuously adjustable
 Heat withstand pip  φ3.0*L300mm, thermocouple fixed onto the end of heat withstand pip to test temperature
 Shock speed  30±2s/T , shock at the level of 60 °
 Timer  0.01～99.99S/M/H setting continuously
 Ribbon burner  nozzle length: 500mm;width: 15mm, contain the Venturi mixer
 Testing temperature  650～950℃
 Burning gas  propane or other gas
 Specimen size  Length about 400mm
 Temperature sensor  ø 2.0 mm Platiniridium temperature sensor , 8～10mm from the bottom of the worktable
 Shock bar  ø25mm, cylindrical, length: 600mm





What is the difference between wire and cable?
 Difference between Wire and Cable 1 Twisted pair cable – A twisted pair cable has two cables that are twisted across each other. Twisting can avoid noise... 2 Multi-conductor cable – Multi conductor cable has two or more conductors that are insulated from each other.

IEC60331-11 Wire & Cable Resistance To Fire Mechanical Shock Tester / Flammability Test Chamber
