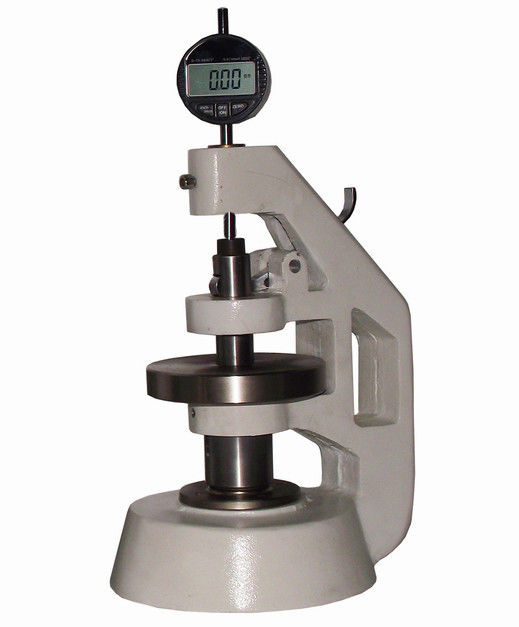

Digital Display Paper Thickness Tester 0 - 20mm

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: GB/T, ISO

Model Number: SL-PB07

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negoitable

Packaging Details: plywood case

Delivery Time: 15 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 10 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                20mm Paper Thickness Tester, QB/T 1035 Paper Thickness Tester


SKYLINE:	Paper Thickness Tester	Measuring Range:	0-20mm
Test Accuracy:	0.001mm(0.01 Optional)	Display Mode:	Digital Display (pointer Optional)
Indication Error:	0.05%	Contact Pressure:	20±5kpa

SKYLINE:	Paper Thickness Tester
Measuring Range:	0-20mm
Test Accuracy:	0.001mm(0.01 Optional)
Display Mode:	Digital Display (pointer Optional)
Indication Error:	0.05%
Contact Pressure:	20±5kpa

Product Description

Paper Thickness Tester

Product Introduction
Paper thickness tester (0.001) is a specially developed and produced instrument for measuring the thickness of paper and paperboard and some sheet materials with certain tightness characteristics. The measuring instrument of paper and paperboard thickness is an indispensable measuring tool for paper production enterprises, packaging production enterprises and quality inspection supervision departments.

Standards:

QB/T 1035 Paper and Board Thickness Tester

QB/T 451.3 "Method for Measuring the Thickness of Paper and Paperboard"

QB/T 1055 Paper and Board Thickness Tester

ISO 438 "Paper-Determination of Lamination Thickness and Tightness".

ISO 534 "Paper and Board-Determination of Single Layer Thickness and Calculation Method of Board Tightness"

Technical parameter

Measuring range	0-20mm
Test accuracy	0.001mm(0.01 optional)
Display mode	Digital display (pointer optional)
Indication error	0.05%
Contact area	1000±5 mm2
Contact pressure	20±5kpa
Parallelism	≤0.035mm
Weight	About 2kg
Working environment	Temperature (20±10)℃, humidity < 85%

How can you tell the thickness of paper?
The best way to obtain the thickness of a single paper sheet involves using a micrometer, dial caliper, or a paper thickness gauge. There are both analog and digital models, but we recommend you to use a digital model as its easier to read and will give you more accurate measurements.

Digital Display Paper Thickness Tester 0 - 20mm 0
