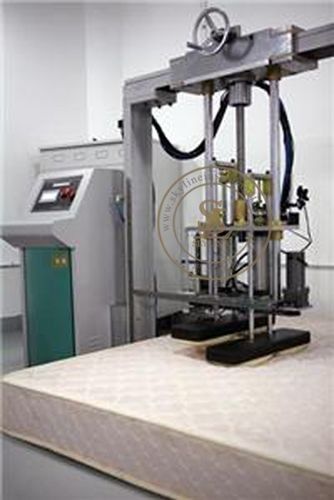

EN1957 Mattress Comprehensive Durability Testing Machine for Complete Durability Test

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-T35
Minimum Order Quantity 1 unit
Packaging Details plywood case
Delivery Time 30 working days
Payment Terms Western Union, T/T,
Supply Ability 1 pcs/ month
Product Details
SKYLINE: Mattress Comprehensive Durability Testing Machine Rolling Test Speed: 16 ± 2 Cycles / Minute
Count: 0~999999 Times Can Be Set Rolling Control Mode: Touch Screen + PLC Control
Edge Loading Pad: Hip Shape, 380mmx495mm Edge Loading Force Value: 1000N
Highlight:

durability testing machine

,

spring testing equipment
Product Description

SL-T11 Mattress Comprehensive Durability Testing Machine


Use of Mattress Testing Machine
The latest national standard design of this tester is suitable for the complete durability test and related measurement items of spring soft mattress.


Standards compliant of Mattress Testing Machine
EN1957, QB/T1952.2



Testing process of Mattress Testing Machine
Rolling test is carried out on the sleeping area of ​​the center of the mattress pad with a certain weight of the roller to simulate the influence of the body roll on the mattress during the sleep process, and the load pad of the specified shape and the specified force value are performed on the edge of the mattress. Load the durability test to simulate the effect of the user sitting on the edge of the mattress and loading the buttocks on the mattress. After a certain number of loadings, the height of the mat surface, the height of the rim, the change in hardness and the damage of the mattress were compared before and after the test to assess the quality of the mattress.


Technical Parameters of Mattress Testing Machine

 Rolling test stroke  the center line of the mattress is symmetrical 500mm
 Rolling test speed  16 ± 2 cycles / minute
 Roller   1400N, intermediate diameter 300mm, diameter 250mm at both ends, length 1000mm
 Count   0~999999 times can be set
 Rolling control mode  touch screen + PLC control
 Edge loading pad  hip shape, 380mmx495mm
 Edge loading position  midpoint of the long side of the mattress, 200mm from the edge
 Edge loading force value  1000N
 Edge loading time  3S
 Measuring position  the center point of the mattress, the center line is symmetrical 250mm two points, the midpoint of the mattress side is 200mm inward
 Measuring loading disc  diameter 355mm, radius of curvature of the end face R800mm
 Power sensor capacity  2kN
 Measuring loading speed  90±5mm/min
 Stroke  500mm
 Transmission motor  servo motor
