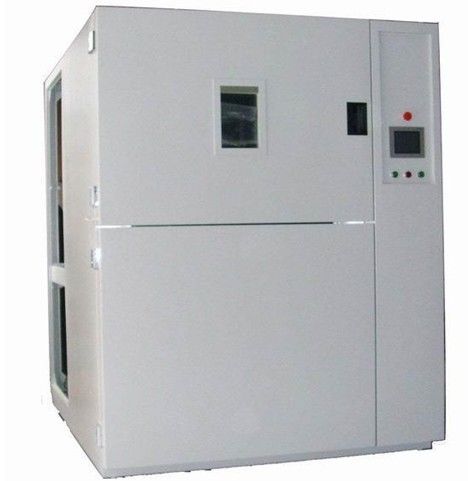

Programmable Water Cooled Thermal Shock Test Chamber With Touch Panel Control

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-E12
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details plywood case
Delivery Time 15 working days
Payment Terms Western Union, T/T,
Supply Ability 10 pcs/ month
Product Details
SKYLINE: Thermal Shock Tester Internal Dimension: (W×H×D)50×50×50 Cm
Material: Interior Material: SUS# Stainless Steel Plate Ambient Temperature: 0°~30°
Refrigeration: Cascade Refrigeration System Warranty: 18 Months
Highlight:

uv accelerated weathering tester

,

environmental testing machine
Product Description

Enviromental Test Chamer Programmable Water Cooled Thermal Shock Test Chamber



Product introduction of environmental test chamber

Thermal shock test chamber is divided into three sections: the high temperature chamber, the low temperature chamber and the testing chamber.
The color touch panel control system was made in Japan can display Chinese / English. The big size liquid-crystal LCD has been adopted.
High formula memory capacity may be set to 120 patterns. The maximum cycle setting is 9999cycles. The maximum setting of each section is 999 Hrs 59 Mins.
Provide with RS-232C communication interface device, capable of controlling / editing/ recording in the linkage with the computer and two set dynamic connection point and convenient application.
Both 2 zone and 3 zone shocks can be chosen.
All equipment is fully automatic, and all process are precisely controlled with P.L.C.’S.
Of any part of the malfunctions, the machine will automatically shuts down and a warning light switches on.
Machine can be shut down automatically in case of electrical power instabilities.


Technical Parameter

  Internal Dimension  (W×H×D)50×50×50 cm
  Structure  Two chambers design(the hot chamber or the cold chamber)
  Damper device  Forced air drive damper
  Interior material  SUS# Stainless steel plate
  Exterior material  SUS# Stainless steel plate
  Basket material  SUS# Stainless steel plate
  Refrigeration  Cascade refrigeration system
  Cooling method  Water
  Ambient temperature  0°~30°
  Preheating temperature  above freezing 60.00°C~above freezing200.00°C
  Pre-cooling temperature  subzero 10.00°~ subzero 70.00°C
  H.T. Shocking  above freezing 60.00°C~above freezing 150.00°C
  L.T. Shocking  subzero 10.00°C~subzero 65.00°C
  Temperature uniformity  ±2.00°C


Simulated load ic 5.0kg
HT IN-Zone subzero 65.00°C~above freezing 150.00°C/5min
LT IN-Zone above freezing 150.00°C subzero 65.00°C
Preheating time: 45MIN
Pre-cooling time: 75MIN
Senor: T×4
Setting range: Temperature: subzero 100.00°C~above freezing 200.00°C/TIME:OHIM~999H/CYCLE:0 ~9999
Resolution: Temperature:0.1°C
Output mode: PID and SSR(control method)
Power(K.W) 23
