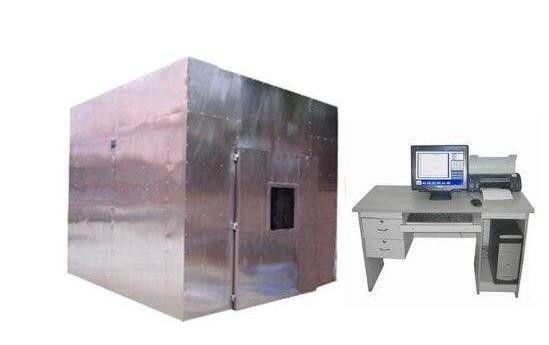

SL-FL51 Wires & Cables Smoke Density Test Room
SL-FL51 Wires & Cables Smoke Density Test Room
SL-FL51 Wires & Cables Smoke Density Test Room
SL-FL51 Wires & Cables Smoke Density Test Room

SL-FL51 Wires & Cables Smoke Density Test Room

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-FL51

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiated

Packaging Details: plywood case

Delivery Time: 20 working days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 1 unit/ month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

flammability test apparatus

,

flammability testing labs

Standards:
IEC61034-1997, GA306.1-2007 Etc
Burning Room Size:
W3000*D3000*H3000mm (27m3)
Material:
Stainless Steel
Measurement Range:
0-100%
Sensor:
Photocell, Load Resistance≤100Ω
Standards:
IEC61034-1997, GA306.1-2007 Etc
Burning Room Size:
W3000*D3000*H3000mm (27m3)
Material:
Stainless Steel
Measurement Range:
0-100%
Sensor:
Photocell, Load Resistance≤100Ω
Product Description
IEC61034-1997 Photocell Sensor Wires & Cables Smoke Density Test Room

Application
Applies to check the size quantity of producing smoke of cables or optical fiber under prescriptive fire source.

Standards
According to  IEC61034-1997, GA306.1-2007, GA306.2-2007.

Technical parameters
Burning room size  W3000*D3000*H3000mm (27m3), made of stainless steel
Standard fire source  1.00L±0.01L alcohol
Illuminant nominal power  100w, nominal voltage:DC12v±0.01V
Sensor  photocell, load resistance≤100Ω
Measurement range  0～100%
Alcohol dish  bottom: 210mm×110mm；top:240mm×140mm；height:80mm
Desktop fan  Rotating shaft is 200mm～300mm from found, 500mm±50mm from wall. Fan blades size of 300mm ± 60mm, wind speed:7～15 m3/min
 Min size  100mm×100mm,height: 2150mm



What is smoke density?

This test measures the amount of smoke given off by a material that is burning or smoldering. The material is tested when it begins to smolder and again when a flame source is added. The smoke density is between 0 (no smoke generated) and 800. Most finishes and materials require a rating of 450 or less.



3 Metre Cube Smoke Density Test Apparatus.pdf
