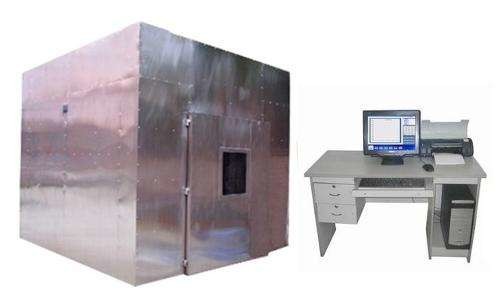

SL-FL51 Wires & Cables Smoke Density Test Room

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-FL51
Minimum Order Quantity 1 unit
Price negotiated
Packaging Details plywood case
Delivery Time 20 working days
Payment Terms T/T, L/C, Western Union,
Supply Ability 1 unit/ month
Product Details
Standards: IEC61034-1997, GA306.1-2007 Etc Burning Room Size: W3000*D3000*H3000mm (27m3)
Material: Stainless Steel Measurement Range: 0-100%
Sensor: Photocell, Load Resistance≤100Ω
Highlight:

flammability test apparatus

,

flammability testing labs
Product Description
IEC61034-1997 Photocell Sensor Wires & Cables Smoke Density Test Room

Application
Applies to check the size quantity of producing smoke of cables or optical fiber under prescriptive fire source.

Standards
According to  IEC61034-1997, GA306.1-2007, GA306.2-2007.

Technical parameters
Burning room size  W3000*D3000*H3000mm (27m3), made of stainless steel
Standard fire source  1.00L±0.01L alcohol
Illuminant nominal power  100w, nominal voltage:DC12v±0.01V
Sensor  photocell, load resistance≤100Ω
Measurement range  0～100%
Alcohol dish  bottom: 210mm×110mm；top:240mm×140mm；height:80mm
Desktop fan  Rotating shaft is 200mm～300mm from found, 500mm±50mm from wall. Fan blades size of 300mm ± 60mm, wind speed:7～15 m3/min
 Min size  100mm×100mm,height: 2150mm



What is smoke density?

This test measures the amount of smoke given off by a material that is burning or smoldering. The material is tested when it begins to smolder and again when a flame source is added. The smoke density is between 0 (no smoke generated) and 800. Most finishes and materials require a rating of 450 or less.



3 Metre Cube Smoke Density Test Apparatus.pdf

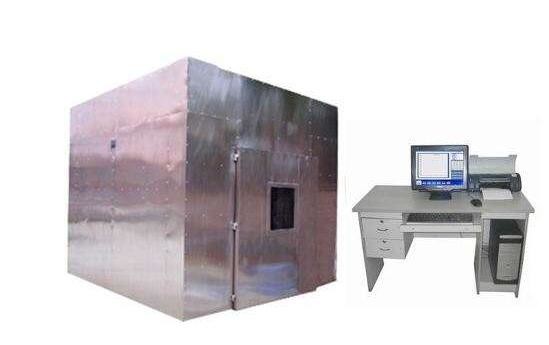

SL-FL51 Wires & Cables Smoke Density Test Room
