Home > products > Lab Testing Equipment > EN 15194 Bicycle Frame Force Fatigue Tester Vertical Horizontal
EN 15194 Bicycle Frame Force Fatigue Tester Vertical Horizontal
EN 15194 Bicycle Frame Force Fatigue Tester Vertical Horizontal

EN 15194 Bicycle Frame Force Fatigue Tester Vertical Horizontal

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: CE , Calibration Certificate

Model Number: SL-BT92

Payment & Shipping Terms

Minimum Order Quantity: 1 Unit

Price: negotiated

Packaging Details: plywood case

Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10 unit / month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Vertical Force Fatigue Tester

,

Horizontal Force Fatigue Tester

,

EN 15194 Fatigue Tester

Machine Structure:
All-steel Structure, Adjustable Spacing: About 300mm, Joint Plate Fixed With Manual Screw Lock.
Servo Cylinder:
2 Groups (horizontal Actuation * 1 Group; Vertical Actuation * 1 Group) Servo Cylinder Horizontal Action: To Do Pulling, Pressing Two-way Action.
Sensor Capacity:
5000N Disc Type Sensor
Horizontal Stroke:
± 75mm
Vertical Stroke:
± 50mm
Testing Frequency:
0-5Hz
Displacement Sensor:
Accuracy ±1%, ±0.5% Correction Accuracy (static) Sensor Dynamic Control Accuracy ±5%
Report Printing Format:
Self-saving Test Results To Make Reports
Force Value Closed Loop:
Fully Automatic Force Value Adjustment 1 Set
Accessories:
Computer Hardware Set, Only Single Test.
Power Supply:
220V/50Hz
Fixture:
Provide Test Fixture Set: Frame Vertical, Horizontal Test
Machine Structure:
All-steel Structure, Adjustable Spacing: About 300mm, Joint Plate Fixed With Manual Screw Lock.
Servo Cylinder:
2 Groups (horizontal Actuation * 1 Group; Vertical Actuation * 1 Group) Servo Cylinder Horizontal Action: To Do Pulling, Pressing Two-way Action.
Sensor Capacity:
5000N Disc Type Sensor
Horizontal Stroke:
± 75mm
Vertical Stroke:
± 50mm
Testing Frequency:
0-5Hz
Displacement Sensor:
Accuracy ±1%, ±0.5% Correction Accuracy (static) Sensor Dynamic Control Accuracy ±5%
Report Printing Format:
Self-saving Test Results To Make Reports
Force Value Closed Loop:
Fully Automatic Force Value Adjustment 1 Set
Accessories:
Computer Hardware Set, Only Single Test.
Power Supply:
220V/50Hz
Fixture:
Provide Test Fixture Set: Frame Vertical, Horizontal Test
Product Description

EN 15194 Bicycle Frame Vertical Horizontal Force Fatigue Tester



Application Of EN 15194 Bicycle Frame Vertical Horizontal Force Fatigue Tester



This machine for bicycle frames to do fatigue testing. Can test the bicycle frame head tube horizontal fatigue, frame vertical fatigue test EN 15194 electric bicycle, (ISO4210-6.4.4) (ISO4210-6.4.5) ISO4210-6.4.4 this test specification for all styles of frame.

Third, the main technical parameters of the equipment.


Test principles

According to the standard EN 15194 electric bicycle, ISO4210, EN14781 roadster, EN14766 mountain bike, EN14764 city car. CNS, JIS, DIN, NF, ISO, CPSC, CSA, AS, BS nine countries test standards designed.



Technical Parameters

Machine structure all-steel structure, adjustable spacing: about 300mm, joint plate fixed with manual screw lock.
Servo cylinder

2 groups (horizontal actuation * 1 group; vertical actuation * 1 group)

Servo cylinder horizontal action: to do pulling, pressing two-way action.
Sensor capacity 5000N disc type sensor
Horizontal stroke ± 75mm
Vertical stroke ± 50mm
Testing frequency 0-5Hz
Displacement sensor accuracy ±1%, ±0.5% correction accuracy (static) Sensor dynamic control accuracy ±5%
Report printing format Self-saving test results to make reports
Force value closed loop fully automatic force value adjustment 1 set
Accessories Computer hardware set, only single test.
Power supply 220V/50Hz
Fixture Provide test fixture set: frame vertical, horizontal test



Diagrams and pictures of equipment

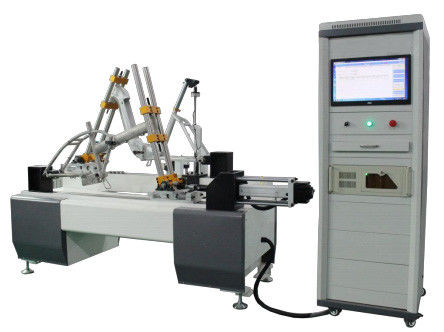

EN 15194 Bicycle Frame Force Fatigue Tester Vertical Horizontal 0



Note:

Insert a steel bar equivalent to the saddle riser in the saddle tube to a depth of 75 mm. clamp it with conventional clamps according to the manufacturer's instructions. Clamp it with conventional clamps according to the manufacturer's instructions.

The upper part of the bar is fitted with a horizontal backward extension, which has a mounting point H on the bar and a mounting height h3. The mounting point H corresponds to

The mounting point H corresponds to the center of the saddle clamp when the saddle of this frame is adjusted to the highest position.

A periodic, vertical downward dynamic force of value F4 is applied at a point 70 mm behind the intersection E of the estimated extension with the axis of the solid steel bar.

50,000 test cycles, maximum test frequency 0-5Hz Fatigue test.
