Flexometer Test Leather Testing Equipment BS-3144 Leather Flexing Tester
| MOQ: | 1 unit |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | Western Union, MoneyGram, T/T |
| Supply Capacity: | 1 pcs/ month |
leather softness tester
,rubber testing equipment

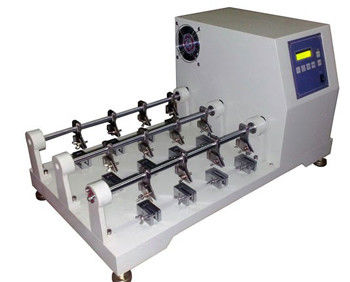

Leather Testing Equipment BS-3144 Leather Flexing Tester for Flexometer Test
Application
Leather Flexing Tester applies to the scratching resistance test of leather, lining, fabric and the similar material at room temperature. One side face of the sample is as the inner surface and the other side face as the outside surface and bend this surface back and forth, write down the times that the sample have break; Or set the breakage time, then take it out and observe the degree it break
Fixture 12 Groups
It is designed for flexing resistance test to bending or other types of failure at flexing creases. Bally Style Flexometer complies with ISO 5402, SATRA TM55, etc.
Specification
| Specimens test block | 70× 45mm, attach cutting knife |
| Bending Angle | 22.5° |
| Bend speed | 100± 5cm |
| Counter LCD display | 0-999999 Automatic shutdown |
| Machine Size | 500× 580× 300mm |
| Weight | 78kg |
| Power | AC220V, 20A |
Testing Standards
ISO 5402, SATRA TM55, DIN 53351, BS-3144, BS EN 13512, JIS-K 6545, CNS-7705
