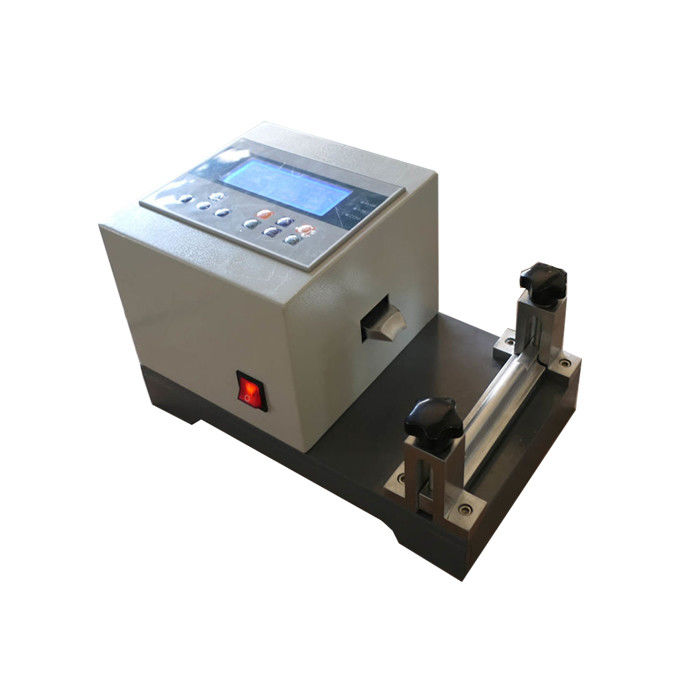

LCD Rapid Sole Adhesion Tester 100kg Load Range

Name: LCD Rapid Sole Adhesion Tester 100kg Load Range
Brand: SKYLINE
SKU: SL-L39
Rating: 4.9 (108 reviews)

Product Details

Place of Origin: DONGGUAN, CHINA

Brand Name: SKYLINE

Certification: CE

Model Number: SL-L39

Payment & Shipping Terms

Packaging Details: Export Packaging

Delivery Time: 7 Working days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                rapid sole adhesion tester, lcd sole adhesion tester, 100kg Load range sole adhesion tester


Load Range:	100kg	Peeling Cutter Arc Length:	(20±0.1)mm And (10±0.05)mm
The Centre Distance Of The Fulcrum And The Arc:	45mm	Display Method:	LCD
Power Supply:	1∮AC 220V 50/60HZ	Dimensions (W×D×H):	30 X 22 X20 Cm
Weight:	15 Kg	Standards:	SATRA TM404

Load Range:	100kg
Peeling Cutter Arc Length:	(20±0.1)mm And (10±0.05)mm
The Centre Distance Of The Fulcrum And The Arc:	45mm
Display Method:	LCD
Power Supply:	1∮AC 220V 50/60HZ
Dimensions (W×D×H):	30 X 22 X20 Cm
Weight:	15 Kg
Standards:	SATRA TM404

Product Description

Product introduction

This testing machine is used to test the peel strength between the sole and the upper of the shoe. The principle is to clamp the finished shoe last on the testing machine, and peel off the sole and upper with a peeling knife. The force of the test peeling off the initial glue is the peeling force, and the peeling strength is calculated based on the width of the peeling knife.

Standards

Comply with GB/T3903.3, BS 1870, BS 4676, SATRA TM404 and other standards.

Technical parameters

Load range	100kg
Peeling cutter arc length	(20±0.1)mm and (10±0.05)mm.
The centre distance of the fulcrum and the arc	45mm
Display method	LCD
Power supply	1∮AC 220V 50/60HZ
Dimensions (W×D×H)	30 x 22 x20 cm
Weight	15 kg
Standards	SATRA TM404
Standard accessories	Shoe last 1set
Standard accessories	Power line 1pc

Principle

A thin rectangular steel plate with an arc shaped cut-out is connected to a force measuring system. The arc shape is positioned on top of the extended edge of the sole of the test footwear at either the toe or heel. The wearing surface of the sole is brought into contact with a fulcrum which is a fixed distance from the center of the arc. The footwear is then rotated by hand about the fulcrum and the force applied by the steel plate which is necessary to separate the upper from the sole is measured . The test may also be non-destructive by applying a set maximum force and checking for failure of the bond.
