Leather Testing Equipment Display Electronic Bursting Tester With Pressure Converter

Name: Leather Testing Equipment Display Electronic Bursting Tester With Pressure Converter
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-L08
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-L08

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: plywood case

Delivery Time: 15 working days

Payment Terms: Western Union, MoneyGram, T/T

Supply Ability: 1 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                leather softness tester, rubber testing equipment


Standards:	Rubber Abrasion Testing Machine	Induction:	Pressure Converter
Instruction Mode:	LCD Display	Clamping Ring Material:	Stainless Steel SUS # 304
Hydraulic Oil:	85% Glycerol, 15% Distilled Water	Pressing Speed:	High-pressure 170 ± 10ml/min

Standards:	Rubber Abrasion Testing Machine
Induction:	Pressure Converter
Instruction Mode:	LCD Display
Clamping Ring Material:	Stainless Steel SUS # 304
Hydraulic Oil:	85% Glycerol, 15% Distilled Water
Pressing Speed:	High-pressure 170 ± 10ml/min

Product Description

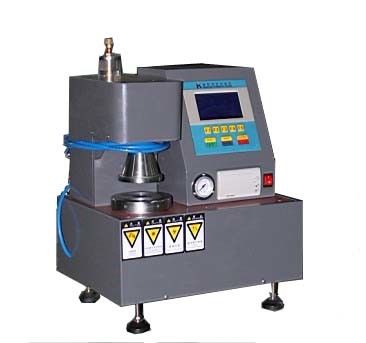

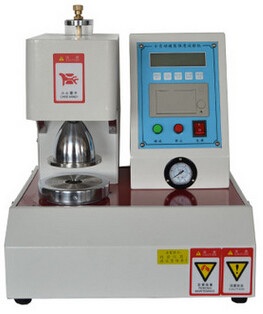

Electronic Bursting Tester

Product introduction

This instrument is an international general (Mullen)-type apparatus, widely applied to packaging materials, mainly for the determination of Single and multi-layer cardboard and corrugated cardboard can also be used for silk, cotton and other non-paper materials, the bursting strength test. To put material only then automatically detect, automatic testing, automatic hydraulic recoil and automatic calculations, store test data, print instrument with digital display and can automatically print test results and data processing.

Standards

JIS-L1004, L1018, L1031, K6328, P8131, P8112 and ASTM-D2210, TAPPI T403, ISO2759-2001

Technical Parameters

Induction	Pressure Converter
Instruction mode	LCD display
Mode of operation	automatic (by pressing the test button and no clear peak)
Power unit	kpa, psi (Lbs / in ^ 2), kgf / cm ^ 2, with unit switching function
Capacity choice	high-pressure 0 ~ 100kgf/cm ^ 2 (0.1kgf/cm ^ 2)
Clamping ring material	stainless steel SUS # 304
Clamping ring diameter	upper and lower clamping ring diameter φ31.5 ± 0.05mm
Hydraulic oil	85% glycerol, 15% distilled water
Pressing speed	high-pressure 170 ± 10ml/min
Horse Power	1/4HP motor vibration
Dimensions	(L × W × H) 430 × 530 × 520mm
Weight	64kg
Power source	1 ∮, AC220V
Standard configuration	a rubber membrane, a wrench, calibration film 10, a bottle of glycerin.

How do you test bursting strength?

Summary of Test Method
A specimen is clamped over an expandable diaphragm. The diaphragm is expanded by fluid pressure to the point of specimen rupture. The difference between the total pressure required to rupture the specimen and the pressure required to inflate the diaphragm is reported as the bursting strength.
