IS5967 Strength Testing Equipment , Stability Testing Equipment For Tables And Trolleys
| MOQ: | 1 unit |
| Standard Packaging: | plywood case |
| Delivery Period: | 35 working days |
| Payment Method: | Western Union, T/T, MoneyGram |
| Supply Capacity: | 1 pcs/ month |
stability testing equipment
,chair testing machine

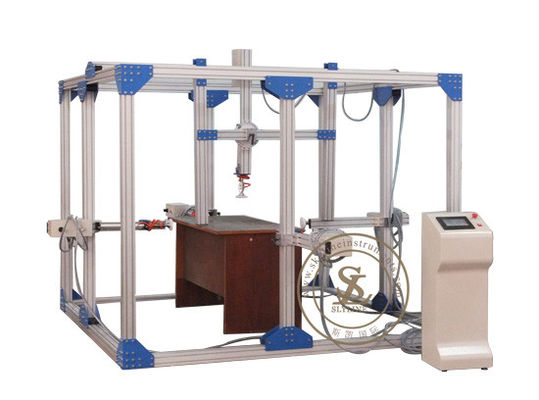

IS5967 Furniture Testing Equipment Strength and Stability Testing Machine for Tables and Trollys
Features
1 It equips 5 group pneumatic cylinder which is 1 set vertical device and 4 set calibrate velocity & thrust separately. Stroke is 500mm
2 Quadruplet brake of vertical device can be adjustment front and back & up and down (100mm~900mm)
3 Quadruplet brake of horizontal device can be adjustment up and down & left and right, it can cooperate with different test position.
4 it has several rows screws hole in the bottom panel of tester which is convenient to install different accessory or fixed test condition
5 it equipped the quick coupling location in front of pneumatic brake for each group which is convenient to change different load or grip.
6 color touch screen & PLC controller, easy operate interface, display imaging and more inconvenient for operator.
This test machine is used for testing the strength and stability of tables and trollys.Can do following testing
Strength testing
1. Vertical static load test
2. Sustained load test
3. Horizontal static load test
4. Vertical impact test
Stability Testing:
1. Vertical stability test
2. Horizontal impact test.
Technical parameter
| Basic Test Frame | 2.5x2.5x2m,be made of 80x80mm Alu.material |
| Load air cylinder | diameter 50mm, 4 pcs,stroke 300mm,max load force up to 1500N |
| Impact cylinder | diameter 50mm, 1pcs, stroke 400mm |
| Load air cylinder | diameter 80mm,1pcs,stroke 500mm, max load force up to 2500N |
| Force sensor | high precision sensor,capacity 2KN,4 pcs；5KN,1 pcs |
| Control way | touch screen + PLC control |
| Counter | 0~999999 times (can by adjusted) |
| Force adjust | precision pressure valve equipment with sensor to disply |
| Air supply | 7kgf/cm^2 |
| Power | 1∮ AC 220V 50Hz 5A |
Testing Standards
EN 527-3, EN581-3 and BIFMA X5.1, IS5967
EN 1725:1998 7.3 Durability test
EN 1725:1998 7.5 Durability of bed edge
EN 1725:1998 7.6 Vertical static load test
