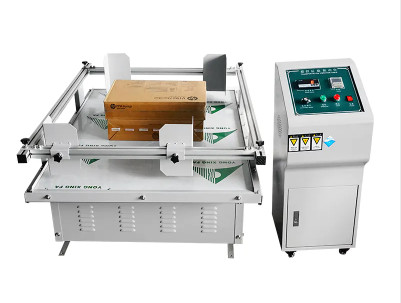

ISTA Transportation Testing / Vibration Test Machine

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-P21
Minimum Order Quantity 1
Price negoitable
Packaging Details Plywood case
Delivery Time 25 working days
Payment Terms T/T
Supply Ability 1 unit/Month
Product Details
Max. Test Load: 1KN Frequency Range: 60-300rpm
Amplitude Range: 25.4mm (1 Inch) Simulation Speed: 25~40km/h
Vibration Mode: Roundtrip Work Table Size: 1000*1200 Mm ( L*W, Can Be Customized)
Highlight:

ISTA Transportation Vibration Test Machine

,

ISTA Vibration Test Machine
Product Description
ISTA Transportation Testing / Vibration Test Machine
Packaging Dimensions
Dimensions (W×D×H): 1300 × 1240 × 980 mm
Power Supply: Three-phase, 220V ±10%, 50/60Hz
Gross Weight: 270 kg
Key Features
  • Cost-effective solution at approximately 10% of comparable US products
  • Synchronous mute belt drive for quiet operation
  • Rail-type specimen holder for easy operation and enhanced safety
  • Heavy-duty channel base with vibration attenuation pads - stable operation without requiring floor screws
  • AC motor speed control for smooth operation and high load capacity
Technical Specifications
Specification Value
Maximum Test Load 1 kN
Frequency Range 60-300 rpm
Amplitude Range 25.4 mm (1 inch)
Simulation Speed 25-40 km/h
Vibration Mode Roundtrip
Work Table Size 1000 × 1200 mm (L×W, customizable)
Outside Dimensions (L×W×H) 1255 × 1070 × 660 mm
Speed Control DC converter or AC Frequency Control
Power Capacity 1 HP
Weight 150 kg
Power Requirements 220V, 50 Hz
Environmental Conditions Temperature: 5-40°C; Relative Humidity <85%
Operation Principle
ISTA Transportation Vibration Test Machine operation principle diagram
