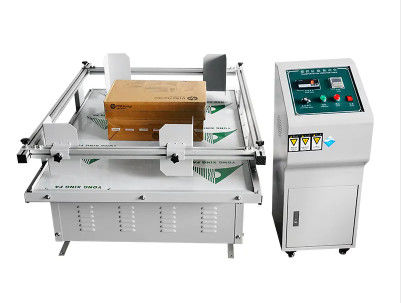

ISTA Transportation Testing / Vibration Test Machine
| MOQ: | 1 |
| Price: | negoitable |
| Standard Packaging: | Plywood case |
| Delivery Period: | 25 working days |
| Payment Method: | T/T |
| Supply Capacity: | 1 unit/Month |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
CE
Model Number
SL-P21
Max. Test Load:
1KN
Frequency Range:
60-300rpm
Amplitude Range:
25.4mm (1 Inch)
Simulation Speed:
25~40km/h
Vibration Mode:
Roundtrip
Work Table Size:
1000*1200 Mm ( L*W, Can Be Customized)
Highlight:
ISTA Transportation Vibration Test Machine
,ISTA Vibration Test Machine
Product Description
Packaging Dimensions:
Packaging Dimensions: (WxDxH) 1300*1240*980mm
Power supply source: Three-phase,220V±10%, 50/60Hz
Gross Weight: 270kg
Feature:
1. Cost friendly, which is only 10% of the same products in the USA;
2. Adopts synchronous mute belt drive for low noisy;
3. Rail-type specimen holder, easy operation and safety;
4. Machine base adopts heavy style channel with vibration attenuation pad, convenient, stable and no need to install land screw;
5. AC motor adjusts speed for smooth operation and large load ability;
Specifications:
| Max. Test Load | 1KN |
| Frequency Range | 60-300rpm |
| Amplitude Range | 25.4mm (1 inch) |
| Simulation Speed | 25~40km/h |
| Vibration Mode | Roundtrip |
| Work Table Size | 1000*1200 mm ( L*W, can be customized ) |
| Outside dimension ( L*W*H ) | 1255*1070*660mm |
| Speed Mode | DC converter or AC Frequency Control |
| Power Capacity | 1 HP |
| Weight | 150kg |
| Power | 220V, 50 Hz |
| Speed Mode | DC converter or AC Frequency Control |
| Environmental Conditions | Temperature: 5~40°C; Related Humidity <85% |
Operation Principle:
