Simple Operate Furniture Testing Equipment Armrest Sideways Static Load Tester EN 12520
| MOQ: | 1 unit |
| Standard Packaging: | plywood case |
| Delivery Period: | 35 working days |
| Payment Method: | Western Union, T/T, MoneyGram |
| Supply Capacity: | 1 pcs/ month |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
CE
Model Number
SL-T41
Aluminum:
High Quality Industrial Aluminum Production Frame
Controller:
PLC+ Touch Screen
Motor:
Air Cylinders
Standard:
EN1335-3-2009 7.2.5 EN 581-2 Safety Of Outdoor Seating EN 12520
Air Supply:
7kgf/cm^2
Capacity:
200N
Highlight:
furniture testing machine
,chair testing machine
Product Description

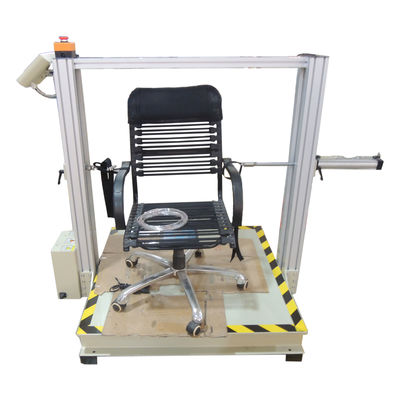

Armrest Sideways Static Load Tester
Use
This machine used to evaluate the pull-resistance ability of the armrest at parallel direction, to determine its fatigue life under parallel strength.Fix the caster, set the time, and pulling strength and time for automatically repositiion.
Apply an outward horizontal force to both arm rests simultaneously. Apply the forces to the edge of the armrest at the point along the arm rest most likely to cause failure but not less than 75 mm from the front or rear edge.
Specification
With Alu.fram,PLC control. Easy and simple to operate.Precise sensor reaction the load force
A pull load cylinder group
Standard
EN1335-3-2009 7.2.5
EN 581-2 Safety of Outdoor Seating
EN 12520
Technical parameters
| Armrest Height | 650-780mm or specified |
| Timer | LCD, 0.01sec-99.9sec, 1sec-99 minute 99 second |
| Machine Size | 1200*500*1000mm |
| Parallel Force | 100-200lb |
| Force Stroke | 0-24 inch or specified |
| Counter | LCD, 0-999,999 times |
| Weight | 250kg |
| Power | AC220V, 3A |
