10 - 60/Min Lab Testing Equipment Automatic Plug Wire Bending Test Machine

Place of Origin China
Brand Name SKYLINE
Certification calibration certificate
Model Number SL-BST016
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details Plywood case
Delivery Time 10 working days
Payment Terms Western Union, T/T,
Supply Ability 2 pcs/ month
Product Details
Skyline: Cable Swing Testing Equipment Test Speed: 10-60/min
Bend Angle: 0-180 ° Adjustable Load: 50, 100, 200, 300, 500g
Standard: GB/T14471-93. Weight: 100kg
Highlight:

abrasion testing equipment

,

brake testing equipment
Product Description

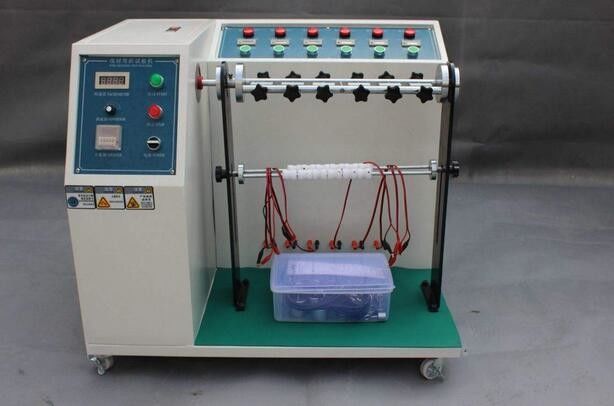

Wire Lab Testing Equipment Automatic Plug Wire Swing Durability Tester



Wire bending testing machine is suitable for the plug pinouts, power cord, USB cable, headphone cable, audio cable, headphone cable and other products wire rod bending tests or swing test. The specimen is fixed at fixture, and adding certain load, test swing around and through a few times, its outage, and view the total number of oscillations, it can automatically count, try to bend to break when not powering on, and automatically stop operation. Native UL817 related standards such as "cords-General safety requirements for components and power supply cords" provisions and general technical requirements for the headphone wire bending tests of the standard GB/T14471-93.





Test stations 6 groups
Bending angle 0-180 ° adjustable
Test speed 10-60/min
Control system Digital with LCD screen
Counter 0-999999
Load weight 50, 100, 200, 300, 500g
Machine weight Approx 100kg
Power AC220V, 50HZ



10 - 60/Min Lab Testing Equipment Automatic Plug Wire Bending Test Machine
