EN 1888 Lab Testing Equipment Baby Stroller Handle Durability Testing Instrument

Place of Origin China
Brand Name SKYLINE
Certification calibration certificate
Model Number SL-BST015
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details Plywood case
Delivery Time 35 working days
Payment Terms Western Union, T/T,
Supply Ability 2 pcs/ month
Product Details
Skyline: Stroller Handle Durability Testing Instrument Adjustable Distance From The Handle Joint: 300mm
Standards: EN 1888 Timer: LED, 1~9999 Times
Dimension: 1650x1100x1900mm Weight: 850kg
Highlight:

abrasion testing equipment

,

physical testing equipment
Product Description

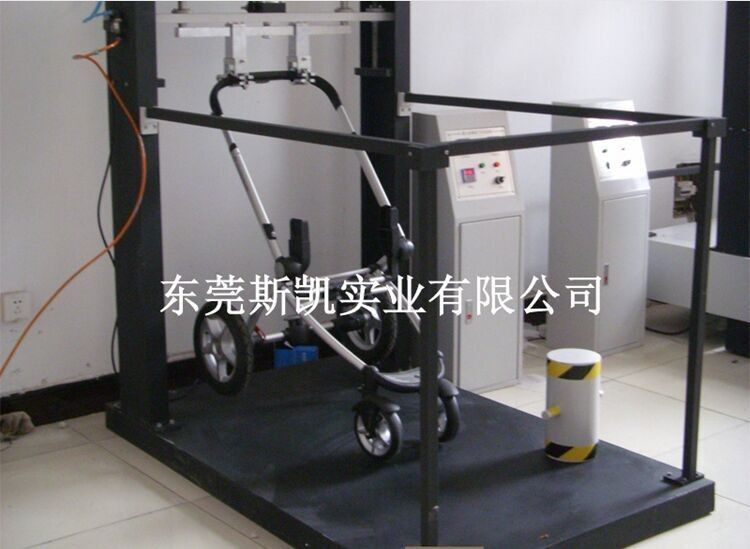

Children Products Lab Testing Equipment Baby Stroller Handle Durability Testing Instrument



Baby Stroller Handle Durability Testing Equipment simulate environment which raised and pressured hand-push pram to over obstacle to test the durability of hand-push pram. Method is to placed the baby carriage in the machine, lifted the rear wheels of pram is 150mm from the ground, and then use frequency 15 ± 1 times/min to pressure the pram of which rear wheel is 150mm from the ground, and continue to reciprocating test 3000 times. View whether the pram is damaged or not, it can't automatically stop operation until reach the specified times, it can be used to test without the staff.


Main Parameters:



 Power of upholding and pushing  driven by pneumatic cylinder, can lift and push 50kg.
 The fixed method of the handle  mobile or replaceable
 Adjustable distance from the handle joint  300mm
 Function of upholding and pushing  leave the trailing wheel 150mm high from the ground when upholding, leave the front wheel 150mm high from the ground when pushing.

 Automatic timer  LED, 1~9999 times
 Testing space  can be customized
 Dimension of the machine  (L×W×H) 1650x1100x1900mm
 Weight  850kg
 Power  AC220V/ 50Hz
