Lab Compression Testing Equipment with Digital display 2000KN 2KW

Name: Lab Compression Testing Equipment with Digital display 2000KN 2KW
Brand: SKYLINE
SKU: SL-2000C
Rating: 4.8 (161 reviews)

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: calibration certificate

Model Number: SL-2000C

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negoitable

Packaging Details: Plywood case

Delivery Time: 15 working days

Payment Terms: Western Union, T/T, MoneyGram, L/C

Supply Ability: 2 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                physical testing equipment, brake testing equipment


SKYLINE:	Digital Display Compression-Testing Machine	Maximum Test Force:	2000KN
Test Force Measurement Range:	10%-100%	Piston Stroke:	80mm
Motor Power:	2KW	Total Weight:	800KG

SKYLINE:	Digital Display Compression-Testing Machine
Maximum Test Force:	2000KN
Test Force Measurement Range:	10%-100%
Piston Stroke:	80mm
Motor Power:	2KW
Total Weight:	800KG

Product Description

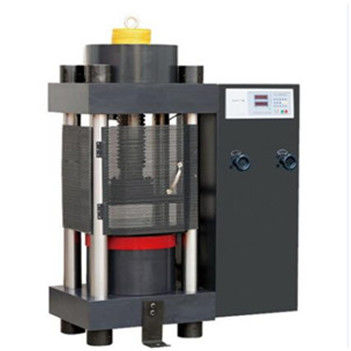

Lab Compression Testing Equipment with Digital display 2000KN 2KW

1. Brief introduction:

This machine adopts the structure of the host and the hydraulic system, which is compact and exquisite. The motor is used to drive the lead screw to adjust the compression space, hydraulic loading and electronic force measurement. It has the functions of loading rate display, peak holding and other functions, and is equipped with a mini printer.

2. Hydraulic system:

The hydraulic oil in the tank goes through the motor to drive the high pressure pump into the oil road, and flows back to the oil valve and enters the oil cylinder. The measuring instrument collects the analysis data through the sensor, shows the time force value, and the tester controls the flow through the oil delivery valve to realize the speed of the test force speed.

3. namometric system:

a.Nual adjustment and return to oil valve, simple and flexible operation.

b.Ximum load peak retention function.

c.Namic display function with loading rate.

d.Ndom test report with date of tast, number, failure load, compressive strength, etc.

4. Safety protection device:

When the test force is more than 3% of the maximum test force, the overload protection and the pump motor stop.

5. in performance technical indicators:

Maximum test force (kN)	2000
Test force measurement range	10%-100%
The relative error of the test force indication value	Less than 1% of the indication value
Upper and lower plate spacing (mm)	300
Piston stroke (mm)	80
Column spacing (mm)	260
Pressure plate size (mm)	260*300
Mainframe size (mm)	8508501450
Motor power (kW)	2
Total weight (kg)	800

6. ctory standard configuration list:

Test machine	1 units (including motor, oil pump, return oil valve)

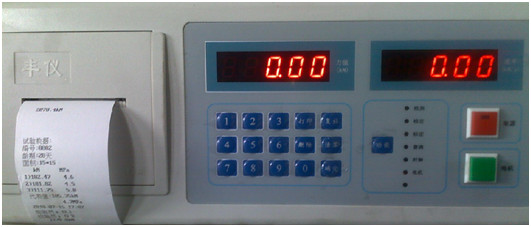

Dynamometer	1, on the host, containing a micro printer
Rduction box	1,on the host
Pressure sensor	1, avionics test
Up and down platen	1 sets
Instruction certificate / packing list	1 sets

Lab Compression Testing Equipment with Digital display 2000KN 2KW 0
