PLC Control Lab Testing Equipment Children Bicycle Handlebar Component Tester

Place of Origin CHINA
Brand Name SKYLINE
Certification Calibration certificate
Model Number SL-BC002
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details Plywood case
Delivery Time 35 work days
Payment Terms T/T, Western Union,
Supply Ability 1 unit
Product Details
SKYLINE: Children Bicycle Handlebar Component Tester Test Force Value: 500N
Drop Height: 50mm Loading Time: 0-999s Can Be Set
Stroke: 250mm Air Source: 7kgf/cm2
Highlight:

abrasion testing equipment

,

physical testing equipment
Product Description

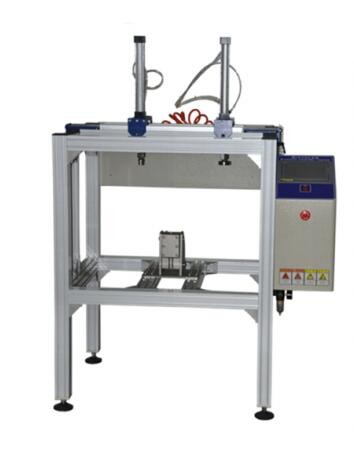

Children Bicycle Handlebar Component Tester



Applications:



Children Bicycle Handlebar Component Tester is suitable for children bicycle handlebar component test. Available to test for: handle stem torque test, handle stem dead load test, handle bar and handle stem torque test.



 Test force value  500N
 Loading Time  0-999s can be set
 Stroke  250mm
 Controller  PLC+ touch screen control
 Air source  7kgf/cm2



Standards:



ISO 8098

GB 8098



Parameters



 Working position  1
 Sample  bicycle handlebar parts (the handle bar and the handle stem)
 Test force value  Max. 500N
 Loading time  0 ~ 999 s can be set
 Stroke  250 mm
 Controller  PLC + touch screen control
 Air source  7 KGF/cm ^ 2
 Power supply  1∮ AC 220V 50Hz 3A
 Dimension (WxDxH)  120x88x154cm
 Weight (about)  ≈90 kg

PLC Control Lab Testing Equipment Children Bicycle Handlebar Component Tester



Applications Industry

All kinds of children bicycles can be tested on the Children Bicycle Handlebar Component Tester
