SATRA TM21 Heel Continuous Impact Testing Machine for Test Plastic Heels

Name: SATRA TM21 Heel Continuous Impact Testing Machine for Test Plastic Heels
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-L15
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-L15

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: neogitable

Packaging Details: plywood case

Delivery Time: 15 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1 unit / month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                abrasion testing equipment, brake testing equipment


SKYLINE:	Heel Continuous Impact Testing Machine	Pendulum:	12.5 ± 1.0 Mm
Impact Energy:	0.68J ± 0.02J	Test Speed:	60 Times / Min
Counter:	LCD Display 0~99,999,999	Power Supply:	1∮ 220 V 3A

SKYLINE:	Heel Continuous Impact Testing Machine
Pendulum:	12.5 ± 1.0 Mm
Impact Energy:	0.68J ± 0.02J
Test Speed:	60 Times / Min
Counter:	LCD Display 0~99,999,999
Power Supply:	1∮ 220 V 3A

Product Description

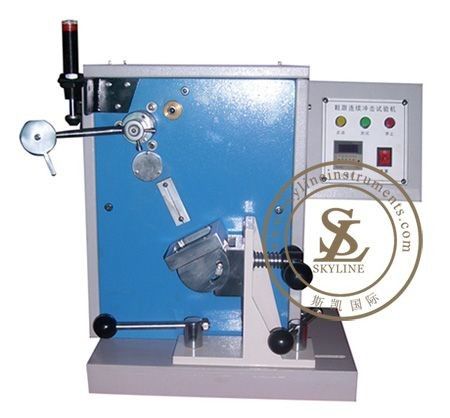

SL-L15 Heel Continuous Impact Testing Machine

Uses

This machine is mainly used to test plastic heels, simulating the ability of women's shoes to resist continuous impact in the case of wearing. This pair of women's heels, with a movement per second, free fall, 0.68J of energy, impact hammer dropped from a horizontal position to a vertical position, impact the specimen until the heel breaks or reaches the required number of fatigue.

Standard

QB/T 2864 BS-5131 SATRA TM21

Technical Parameters

Pendulum	12.5±1.0mm
Impact energy	0.68J ± 0.02J
Pendulum drive shaft center distance impact hammer center	152 ± 2 mm
Impact hammer	57 ± 1 mm, thickness 20 ± 1 mm
Impact head	length 35 ± 2 mm, width 20 ± 1 mm, radius 3.0 ± 0.5 mm, thickness 6 ± 0.5 mm
Test speed	60 times / min
Counter	LCD display 0~99,999,999
Weight (approx.):	68 kg
Power supply	1∮ 220 V 3A

The tip of the impact head is from the center of the hammer: 63.5 ± 2 mm
