ISO4210 0-25km / Hr Adjustable Bicycle Comprehensive Performance Test Machine

Name: ISO4210 0-25km / Hr Adjustable Bicycle Comprehensive Performance Test Machine
Brand: SKYLINE
SKU: SKYLINE
Rating: 4.8 (112 reviews)

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: plywood case

Delivery Time: 15 working days

Payment Terms: Western Union, MoneyGram, T/T

Supply Ability: 1 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                abrasion testing equipment, physical testing equipment


SKYLINE:	Bicycle-Comprehensive-Performance-Test-Machine	Carrying Load:	≦ 80kg
Speed:	0-25km / Hr Adjustable	Machine Size:	(L × W × H) 250 × 150 × 280cm
Bear The Wheel Diameter:	760mm	Weight:	600kg

SKYLINE:	Bicycle-Comprehensive-Performance-Test-Machine
Carrying Load:	≦ 80kg
Speed:	0-25km / Hr Adjustable
Machine Size:	(L × W × H) 250 × 150 × 280cm
Bear The Wheel Diameter:	760mm
Weight:	600kg

Product Description

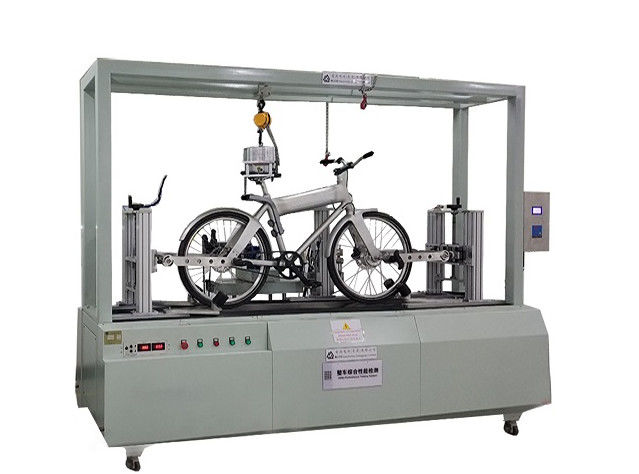

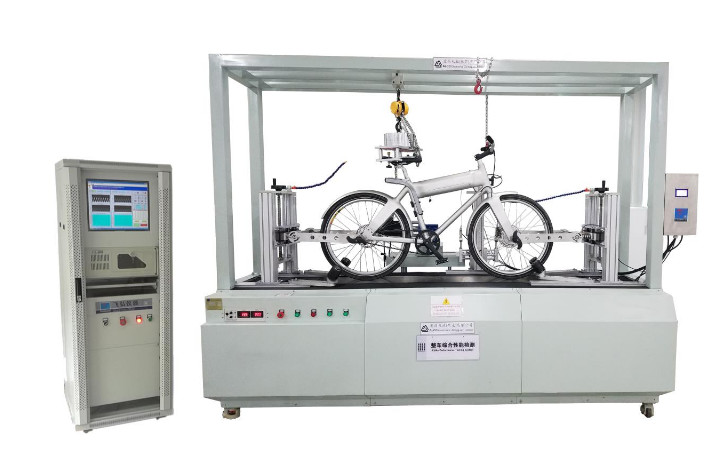

Bicycle Comprehensive Performance Test Machine

Introduction

Attach a certain load to the car, fix it on the machine, start the machine, make the car run at a certain speed, and pass a certain obstacle. After a period of time, inspect the car knot for damage or separation.

Scope of application

This machine mainly simulates the actual situation of the use of electric bicycles. Place the finished vehicle tester on the platform, adjust the safety device according to the standard configuration and fixed weight, and set the relevant parameters on the computer before testing.

According to the standard

En15194, GB17761 ISO4210

Technical parameter

Conveyor speed	1.4±0.1m/sec (5km/h3.6km/h) is adjustable
Weight	according to the CNS impact block production method
Carrying load	≦ 80kg (using superimposed way)
Power	AC dual-frequency drive (3HP)
Speed	0-25km / hr adjustable
The impact block	height 25mm width 50mm (can be customized according to requirements) 45 ° chamfer
Detection	Using Korean charging sensor, it can detect bicycle damage and stop in the first time
Machine size	(L × W × H) 250 × 150 × 280cm
Weight	600kg
Applicable models	city car, mountain bike, baby carriage, co-train
Bear the wheel diameter	760mm (or specified)

Test items

1. Simulated human body weight test, loaded with weights, loading parts including handlebars, seat, five-way, rear, etc.

2. Simulated riding road condition test can be screen test obstacle test separately

3. Can measure the crank power of different speeds of bicycle

4. Brake test can automatically adjust the brake force test bicycle dry state and wet brake distance

5. Electric vehicle power test set cruising range test

6. The drum distance is adjustable for different models

7. Automatically generate test reports using computer control

8. Climbing performance test
