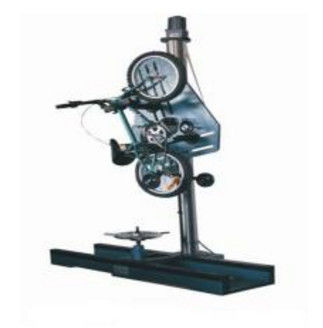

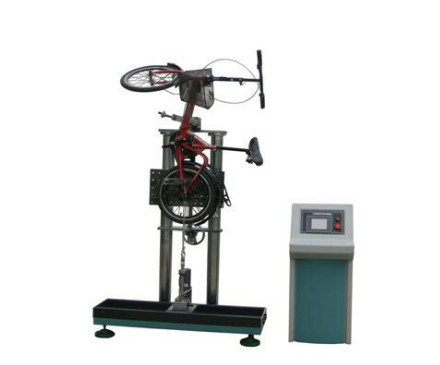

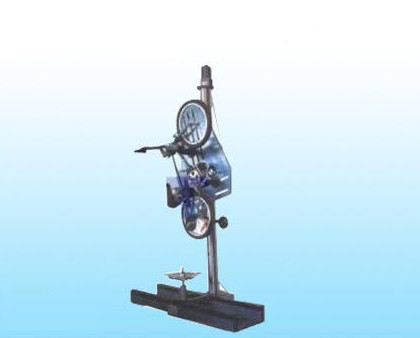

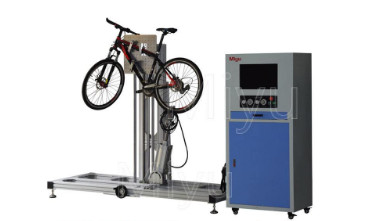

Wheel Clamping Force Detachment Tester
Product introduction
Fasten the wheel with the nut on the frame and the front fork. When testing the front wheel clamping force, apply a 500N force symmetrically on both sides of the front axle along the front wheel disassembly direction for 30s. Check the front axle and front fork. There is no relative displacement between them. When testing the rear wheel clamping force, along the disassembly direction of the rear wheel, a 1000N force is applied symmetrically on both sides of the rear axle for 30s, and there is no relative displacement between the rear axle and the frame.
Technical parameter
| Test principle |
BS ISO8098, EN14765 |
| Load capacity |
500kgf |
| Timer |
0~60S adjustable |
| Time accuracy |
±0.1s |
| Loading method |
electric loading |
| Control system |
PLC+ touch human-machine interface control |
| Dimensions (WxDxH) |
Host 2000×850×2000 |
| Weight (approx) |
120kg |
| Power supply |
1∮, AC220V, 15A (or specified by country) |
Experiment method
1. Fix the front wheel of the bicycle according to the standard;
2. Turn on the power, set the force value on the power display, and set the force time on the timer;
It has been set for 30 seconds at the factory.
3. Press the execute key to execute the test. The machine automatically applies force to the test piece. When the set value is reached, the timer starts to count. When the set time is reached, the machine automatically stops applying force.
4. After the test is completed, remove the test piece and check whether there is relative displacement between the shaft and the front fork to judge whether it is qualified.
5. Install the bicycle rear wheel according to the standard, repeat steps 2, 3, and 4 to do the rear wheel clamping force test.
