EN14765 BS ISO8098 Bicycle Testing Machine Drive System Static Load Tester

Place of Origin China
Brand Name SKYLINE
Certification CE
Minimum Order Quantity 1 unit
Packaging Details plywood case
Delivery Time 15 working days
Payment Terms Western Union, , T/T
Supply Ability 1 pcs/ month
Product Details
SKYLINE: Bicycle-Testing-Machine-Drive-System-Static-Load-Tester Standard: EN14765, BS ISO8098
Load: 0~2000N (adjustable ) Power Display Accuracy: ≤ ± 1%
Dimensions (WxDxH): Host 2000×850×2000 Power Supply: 1∮, AC220V, 15A
Highlight:

physical testing equipment

,

brake testing equipment
Product Description

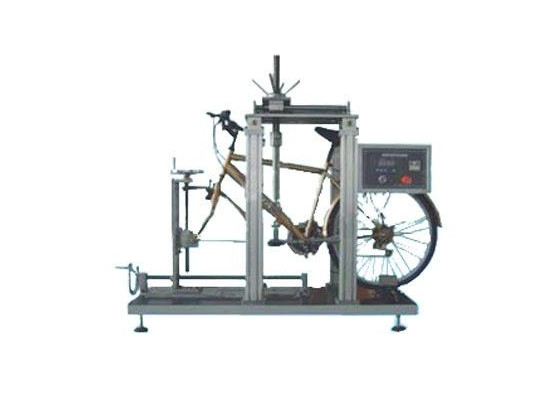

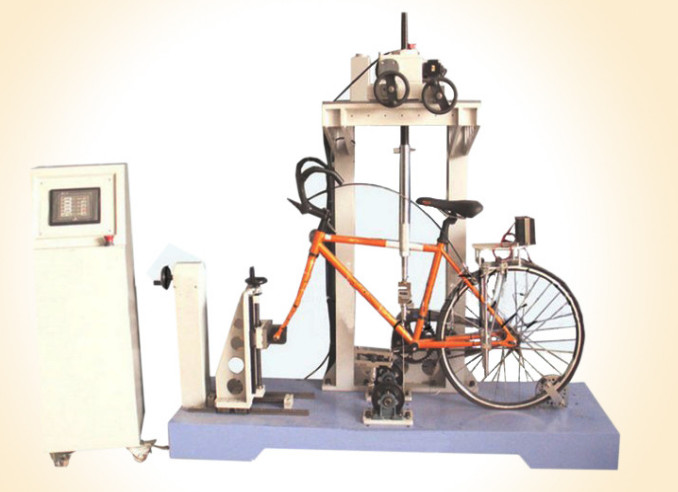

Bicycle-Testing-Machine-Drive-System-Static-Load-Tester



Product description

The drive system static load test is performed on a combination including a frame, an ankle, a transmission system, and a rear wheel component, and includes a shifting mechanism. Place the frame vertically with its center plane and the rear wheel at the wheel to prevent the wheel from rotating. Apply a force of 600N vertically to the center of the ankle and keep the force at full load for 15 s. Check any parts of the test piece for breakage or permanent deformation, and whether the drive function is normal.



Technical Parameters

 According to the standard  EN14765, BS ISO8098
 Load  0~2000N can be adjusted freely
 Power display accuracy  ≤ ± 1%
 Timer  0 to 60 seconds can be set
 Control system  PLC+ touch human-machine interface control
 Dimensions (WxDxH)  Host 2000×850×2000
 Weight (approx)  120kg
 Power supply  1∮, AC220V, 15A



EN14765 BS ISO8098 Bicycle Testing Machine Drive System Static Load Tester
