Bicycle Pedal Flower Hub Abrasion Testing Machine Test Frequency Adjustable

Place of Origin China
Brand Name SKYLINE
Certification CE
Minimum Order Quantity 1 unit
Packaging Details plywood case
Delivery Time 15 working days
Payment Terms Western Union, , T/T
Supply Ability 1 pcs/ month
Product Details
SKYLINE: Bicycle Pedal Flower Hub Abrasion Testing Machine Test Frequency: 0~120 Times/min Adjustable
Counter: 0~999999 Setting To Stop Automatically Number Of Tests: 4
Timer: 199hr Rotation Accuracy: ±1 Rpm
Power Source: Inverter Motor Power Supply: 1∮, AC220V, 15A
Highlight:

abrasion testing equipment

,

brake testing equipment
Product Description

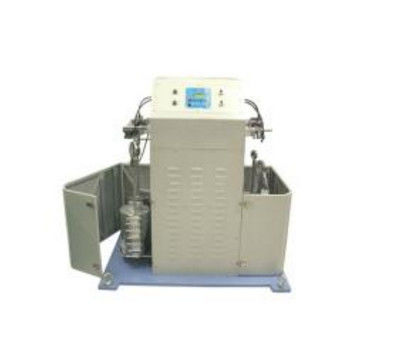

Bicycle Pedal Flower Hub Abrasion Testing Machine



Product introduction

This machine is designed and manufactured according to the standard BS ISO8098, EN14781, ISO4210, BS EN14765. The pedal or hub is mounted on the rotating shaft of the instrument. The load is applied according to the specifications and the set speed is selected. The continuous test is executed to reach the required setting. Count, determine whether the sample has damage or defects, to ensure the quality of the product.



Technical parameter

 Test frequency

 0~120 times/min adjustable
 Counter  0~999999 setting to stop automatically
 Counter (different)  four groups of individual counts to stop the stop count
 Number of tests  4
 Timer  199hr
 Weight  30kg, 50kg, 65kg (combined)
 Rotation accuracy  ±1 rpm
 Power source  inverter motor
 Dimensions (WxDxH)  Host 2600×2400×900
 Weight (approx)  300kg
 Power supply  1∮, AC220V, 15A (or specified by country)
