Fully Automatic Thickness Gauge Paper Thickness Gauge Computer Paper Thickness Tester

Name: Fully Automatic Thickness Gauge Paper Thickness Gauge Computer Paper Thickness Tester
Brand: SKYLINE
SKU: SKYLINE
Rating: 4.7 (134 reviews)

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: Calibration certificate

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: Plywood case

Delivery Time: 35 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1 unit

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                abrasion testing equipment, physical testing equipment


SKYLINE:	Fully Automatic Thickness Gauge	Display Value Error:	±0.3%
Indication Value Variability:	≤0.3%	Measuring Range:	≤5mm
Resolution:	0.001mm	Measurement Parallelism:	≤0.002mm

SKYLINE:	Fully Automatic Thickness Gauge
Display Value Error:	±0.3%
Indication Value Variability:	≤0.3%
Measuring Range:	≤5mm
Resolution:	0.001mm
Measurement Parallelism:	≤0.002mm

Product Description

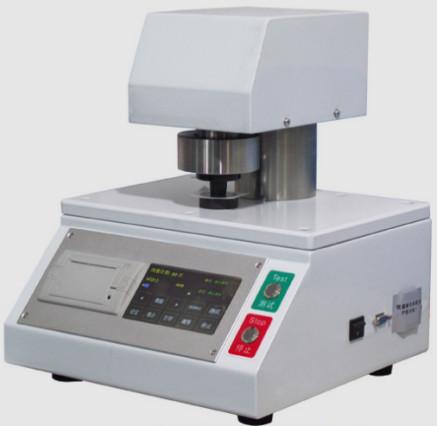

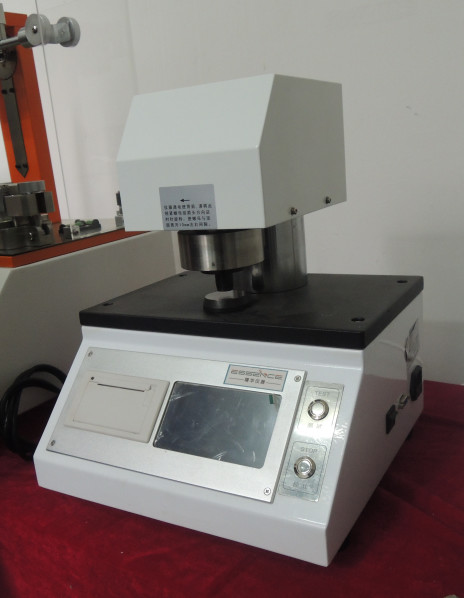

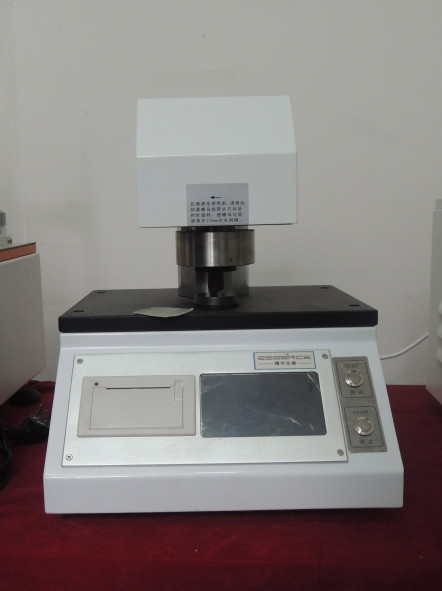

Fully Automatic Thickness Gauge Paper Thickness Gauge Computer Paper Thickness Tester

Product usage overview
The instrument is an electromechanical integration product, computer measuring and controlling paper thickness meter
Using high-precision displacement sensor, the instrument has the functions of test, conversion, display, memory, printing and data processing.
Ideal test equipment for industries and departments such as paper, packaging, film research and product quality supervision and inspection.

Technical parameter

Power source	AC220V±10% 2A 50Hz
Display value error	±0.3%
Indication value variability	≤0.3%
Measuring range	≤5mm
Resolution	0.001mm
Measurement parallelism	≤0.002mm
Contact area	paper (200±5)mm2; film (50±1)mm2
Contact pressure	(100±10) kPa; (can be changed); film (17.5±1) kPa (other pressures can be customized)
Falling speed	≤0.5-6mm/s; (can be changed)
Beating printer	modular integrated thermal printer
Weight	about 25kg

Fully Automatic Thickness Gauge Paper Thickness Gauge Computer Paper Thickness Tester 0
