Paper Board Thickness Meter Desktop Paper Board Thickness Tester

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: Calibration certificate

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: Plywood case

Delivery Time: 35 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1 unit

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                abrasion testing equipment, physical testing equipment


SKYLINE:	Cardboard Sampler	Measuring Range:	0-5mm
Test Accuracy:	0.01mm	Display Mode:	Digital Display
Indication Error:	0.05%	Contact Area:	200±5 Mm2

SKYLINE:	Cardboard Sampler
Measuring Range:	0-5mm
Test Accuracy:	0.01mm
Display Mode:	Digital Display
Indication Error:	0.05%
Contact Area:	200±5 Mm2

Product Description

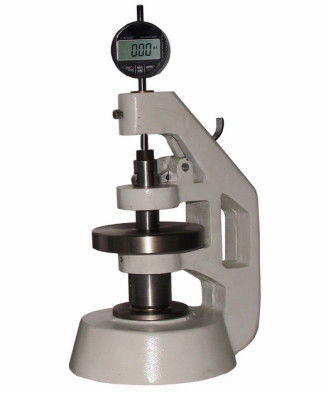

Paper Board Thickness Meter Desktop Paper Board Thickness Tester

Product usage overview
Thickness gauge is a special test instrument for thickness measurement. Its main technical parameters and performance indicators are in compliance with the relevant standards.
Widely used in paper, paperboard, film, non-woven fabrics, and other sheet materials, corrugated board thickness measurement.

Technical Parameters

Measuring range	0-5mm
Test accuracy	0.01mm (0.001 optional)
Display mode	digital display (pointer optional)
Indication error	0.05%
Contact area	200±5 mm2
Contact pressure	100±5kpa
Parallelism	≤0.035mm
Weight	about 2.5kg
Working environment	temperature (20 ± 10) ° C, humidity <85%
