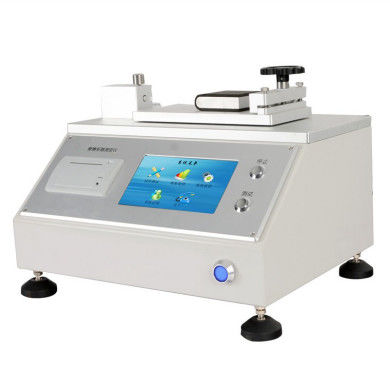

Paper Friction Coefficient Tester / Film Friction Coefficient Tester for Measuring Plastic Film

Place of Origin CHINA
Brand Name SKYLINE
Certification Calibration certificate
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details Plywood case
Delivery Time 35 work days
Payment Terms T/T, Western Union,
Supply Ability 1 unit
Product Details
SKYLINE: Paper Friction Coefficient Tester Measurement Range: (0.01~10)N
Sample Thickness: ≤0.2mm Slider Size: 63mm × 63mm
Slider Quality: 200g ± 2g Test Bench Size: 170mm × 225mm
Power Supply: AC220V±10% 50HZ 2A
Highlight:

physical testing equipment

,

brake testing equipment
Product Description

Paper Friction Coefficient Tester/ Film Friction Coefficient Tester



Application

Suitable for measuring the static friction coefficient of plastic film and sheet, rubber, paper, cardboard, woven bag, fabric style, metal composite tape for communication cable, conveyor belt, wood, coating, wiper, shoe material, tire, etc. And dynamic friction coefficient. By measuring the slipperiness of the material. It can also be used for the measurement of the slip properties of daily necessities such as cosmetics and eye drops.



Technical parameter

 Power supply  AC220V±10% 50HZ 2A
 Measurement range  (0.01~10)N
 Resolution  0.01 N
 Display value accuracy indication  error ±2%
 Sample thickness  ≤0.2mm
 Slider size  63mm × 63mm
 Slider quality  200g ± 2g
 Test bench size  170mm × 225mm
 Working formation  170mm
 Test speed  0-360mm/min (adjustable); recommended test speed: (100±10) mm
