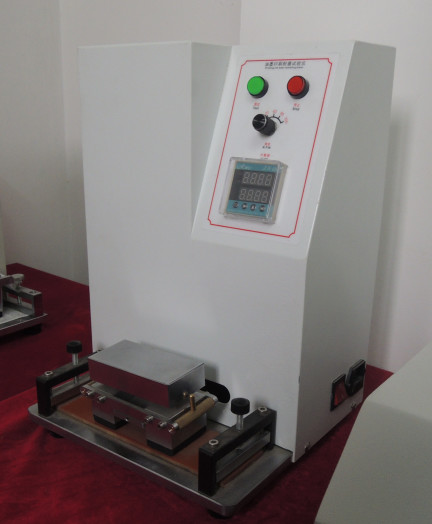

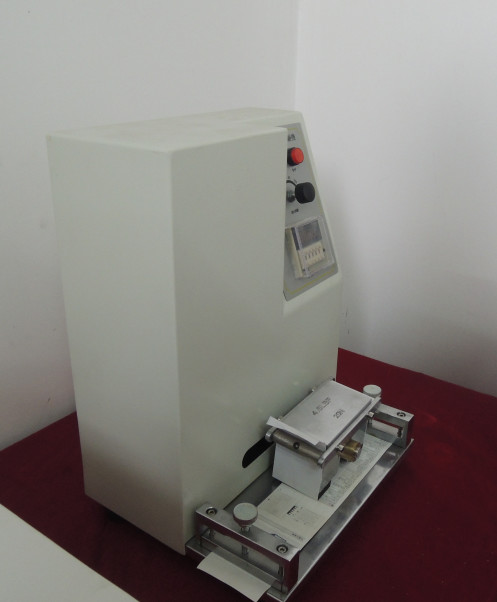

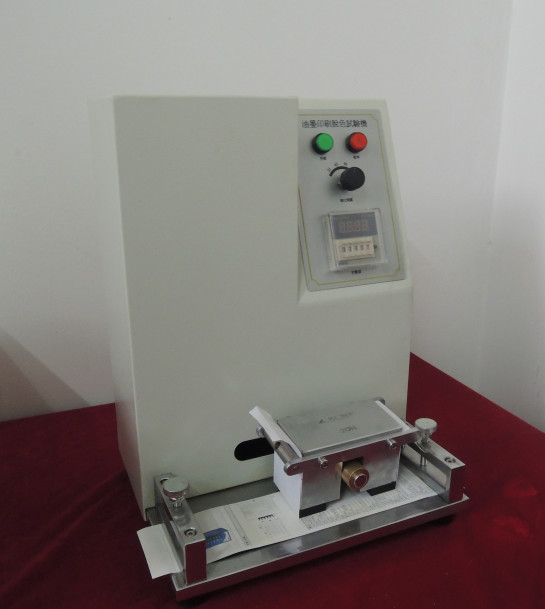

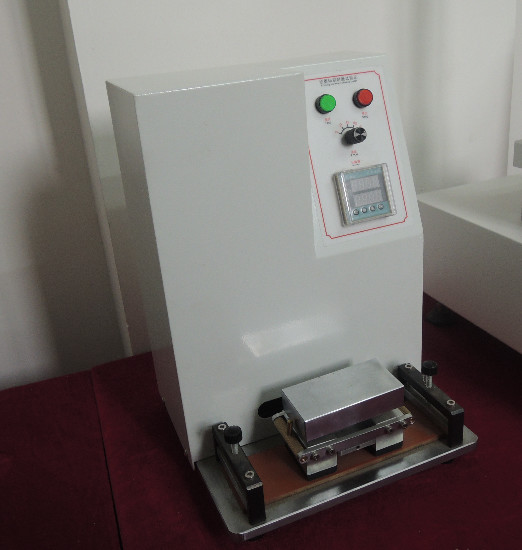

LED Display Ink Printing Bleaching and Abrasion Testing Machine / Ink Abrasion Tester

Place of Origin CHINA
Brand Name SKYLINE
Certification Calibration certificate
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details Plywood case
Delivery Time 35 work days
Payment Terms T/T, Western Union,
Supply Ability 1 unit
Product Details
SKYLINE: Ink Printing Bleaching And Abrasion Testing Machine Operation Mode: LED Display
Test Piece Area Size: 60x220mm Honing And Rubbing Load: 20N±0.2N
Rub Stroke: 60mm Rubbing Area: 50x156mm
Highlight:

abrasion testing equipment

,

brake testing equipment
Product Description

Ink Printing Bleaching and Abrasion Testing Machine



Application

The ink abrasion tester is suitable for the test test of the wear resistance of the ink layer of the printed matter, the abrasion resistance of the photosensitive layer of the PS plate and the abrasion resistance of the surface coating of the related products. Effectively analyze the problems of poor rub resistance of the printed matter, falling off of the ink layer, low printing durability of the PS plate, and poor coating hardness of other products.



Technical parameters

 Operation mode  LED display
 Test piece area size  60x220mm
 Rubbing speed  four speed adjustable (21/43/85/106) r/min
 Honing and rubbing load  20N±0.2N
 Rub stroke  60mm
 Number setting  0-999999 Automatic shutdown
 Rubbing area  50x156mm
 Machine power  40W
 Machine size  263x230x350mm WxDxH
 Machine weight  18kg
 Operating voltage  AC 220V 50/60HZ 1A



LED Display Ink Printing Bleaching and Abrasion Testing Machine / Ink Abrasion Tester
