Home > products > Lab Testing Equipment > Printing Lab Testing Equipment 20℃ ～ 250℃ High Temperature Steaming Oven

Printing Lab Testing Equipment 20℃ ～ 250℃ High Temperature Steaming Oven

Name: Printing Lab Testing Equipment 20℃ ～ 250℃ High Temperature Steaming Oven
Brand: SKYLINE
SKU: SL-E100
Rating: 4.6 (125 reviews)

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE, calibration certificate

Model Number: SL-E100

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negoitable

Packaging Details: plywood case

Delivery Time: 15 working days

Payment Terms: Western Union, T/T, MoneyGram

Supply Ability: 2 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                physical testing equipment, brake testing equipment


SKYLINE:	High Temperature Steaming Oven	Test Cloth Size:	300 Mm × 400 Mm (effective Size 250 Mm × 350 Mm)
Operating Temperature:	20 ℃ ~ 250 ℃.	Total Power:	6.2KW.
Weight:	180kg	Power:	Three-phase AC380V 50Hz

SKYLINE:	High Temperature Steaming Oven
Test Cloth Size:	300 Mm × 400 Mm (effective Size 250 Mm × 350 Mm)
Operating Temperature:	20 ℃ ~ 250 ℃.
Total Power:	6.2KW.
Weight:	180kg
Power:	Three-phase AC380V 50Hz

Product Description

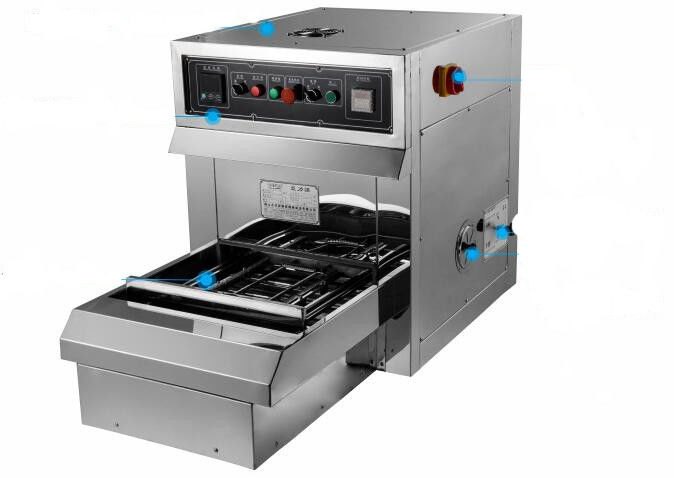

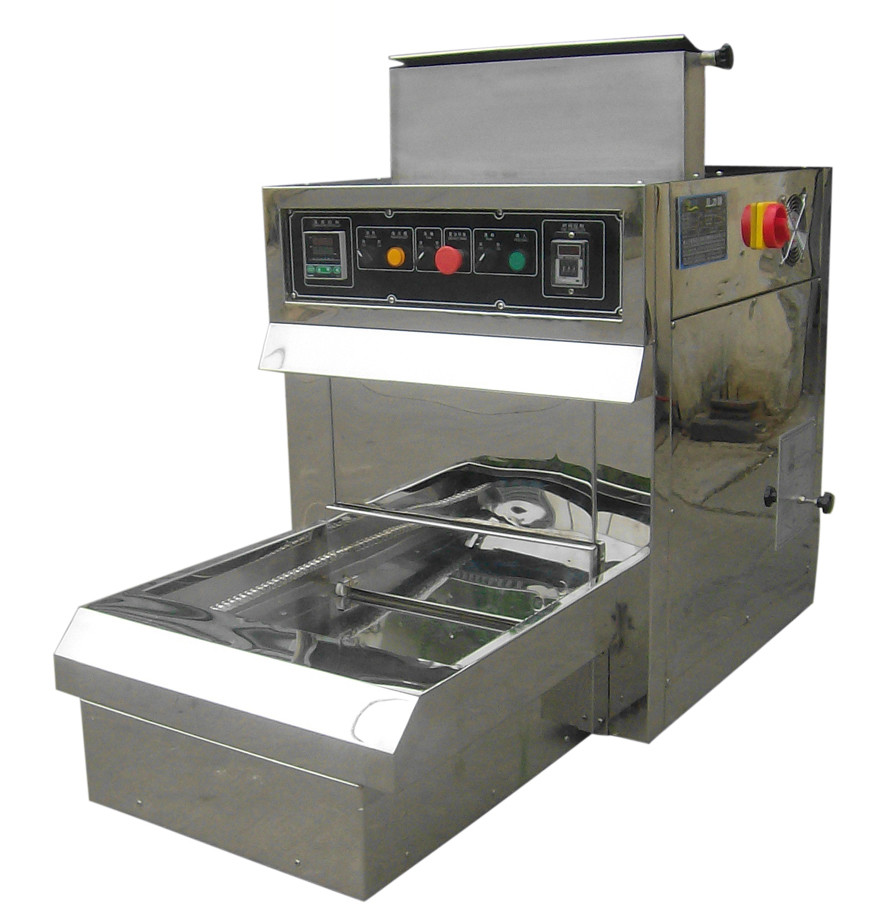

Printing Lab Testing Equipment 20℃～250℃ High Temperature Steaming Oven

Machine characteristics
1. This machine looks and designs similar to M-III, in addition to drying, stereotypes, baking, hot melt fixing (temperature 20 ℃ ~ 250 ℃) function, and steam steaming effect.
2. Apply to the dyeing and finishing laboratory for steam culture, baking, shaping drying and other aspects of the test, in order to get the correct resin processing formula, test dyeing and finishing color change and verify the results of pharmaceutical test.
3. The printing process of the printing factory is carried out by the temperature, the humidity and the time in the steam box, which can be applied to the following works:
① Drying, shaping and hot melt dyeing, electrical heating temperature range 20 ℃ ~ 250 ℃
② Saturated steam baking, steam processing, steam heating temperature range of 102 ℃ ± 2 ℃
③ High temperature steam processing, electric and steam and use, the temperature range of 100 ℃ -250 ℃

Technical parameters

Test cloth size	300 mm × 400 mm (effective size 250 mm × 350 mm)
Steady drying, baking hot air circulation control	Operating temperature 20 ℃ ~ 250 ℃
Steam	steam directly into the steam steam
Insulation control	1 ~ 99M can be preset, after the automatic exit, and the end of the bell
Fan	stainless steel wind wheel, fan motor power 180 W
Needle plate	two-way stretch needle plate rack
Power	three-phase AC380V 50Hz
Total power	6.2KW
Overall dimensions: side	1320 mm × positive 660 mm × height 800 mm (the whole machine are high quality stainless steel SUS304)
Weight	about 180KG

Printing Lab Testing Equipment 20℃ ～ 250℃ High Temperature Steaming Oven 0
