(50 ~ 1400) kPa Paper Breakage Test Machine Paper Bstrength Testing Machine

Place of Origin CHINA
Brand Name SKYLINE
Certification Calibration certificate
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details Plywood case
Delivery Time 35 work days
Payment Terms T/T, Western Union,
Supply Ability 1 unit
Product Details
SKYLINE: Paper-Breakage-Test-Machine Indication Variability: ≤0.5%
Resolution: 0.1 KPa; Measuring Range: (50 ~ 1400) KPa;
Oil Delivery: (95 ± 5) ML / Min Clamping Force: ≤1200kPa (adjustable);
Highlight:

abrasion testing equipment

,

physical testing equipment
Product Description

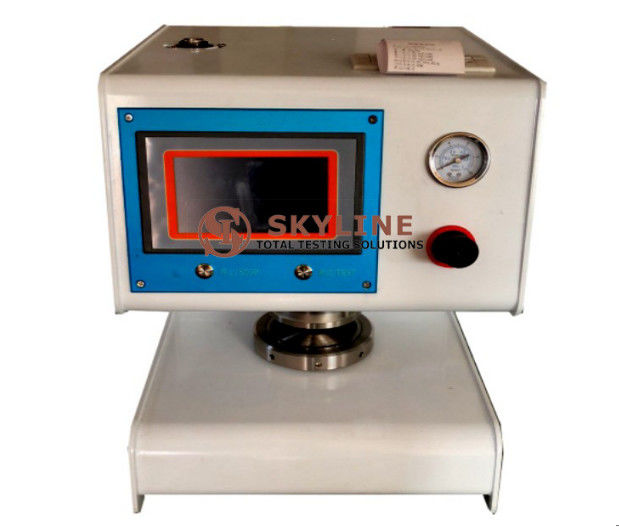

Paper Breakage Test Machine Paper Bstrength Testing Machine



Product usage overview
Fully automatic burst strength testing machine for the determination of various paperboard and single and multi-layer corrugated board, as well as for the resistance of non-paper materials such as silk and cotton.
Strength test.
Operation method: as long as the material is placed, it is automatically detected, automatic test, automatic oil pressure return and automatic calculation, storage test data, printing, instrument
Display with numbers and automatically print test results and data processing.



Technical Parameters

 Power source  AC220V±10% 2A 50Hz
 Indication error  ±0.5%
 Indication variability  ≤0.5%
 Resolution  0.1 kPa
 Measuring range  (50 ~ 1400) kPa
 Oil delivery  (95 ± 5) mL / min
 Clamping force  ≤1200kPa (adjustable)
 Air compressor  pressure (0.6 ~ 0.7) MPa; displacement (0.02 ~ 0.3) m3 / min (non-standard)
 Film  the pressure range is (30 ± 5) kPa when the height is (9 ± 0.2) mm
 System sealing  pressure drop <10% FS within 1min
 Man-machine interface  5-inch LCD screen or color touch screen, Chinese and English menu
 Printout  modular integrated thermal printer
 Communication output  WAN port (optional) / RS232 (optional)
 Working environment  indoor temperature (20 ± 10) °C; relative humidity < 85%
 Dimensions  (400 × 350 × 500) mm (length × width × height);
 Weight  approx. 40 kg



Features
1. After the cardboard is crushed, it will automatically stop and return to the initial position;
2. Fully automatic one-button operation;
3. Can store data at the same time;
4. With micro printing, the test results can be printed;
5. Equipped with emergency stop button to improve operation safety;
6. With pneumatic pressure gauge, monitor pressure at any time;
7. HD LCD display
8. The use of silicone oil instead of traditional glycerin refueling, good fluidity, not easy to block the oil circuit;
It does not contain water and will not cause corrosion of parts inside the machine and prolong the service life of the machine.
