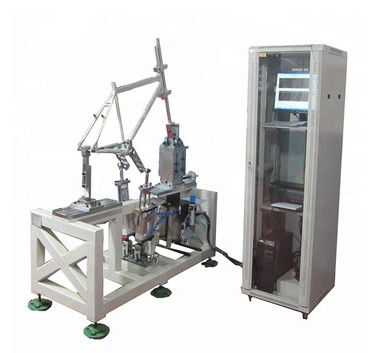

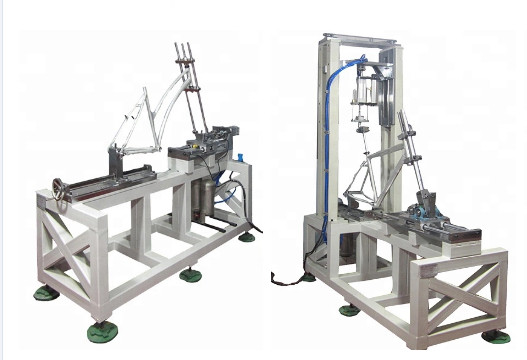

Automatic Bicycle Crank Dynamic Fatigue Tester
Product Description
The equipment is designed with standard design of ISO 4210-2015, etc, A test for measuring the pedal force of a bicycle, electric screwdriver, baby, etc The device adopts computer control, it is composed of Power closed loop control, real-time monitoring, real-time curve, etc, can test the complete cycle of frame pedal force fatigue test, provide the basis for customer Quality Management
ISO 4210 Frame of bike bicycle pedal power horizontal vertical dynamic fatigue durability testing machine
| Applicable frame |
16-to 29-inch |
Power |
5000N |
| Displacement |
100-150mm |
Power Load Angle |
0-10° |
| Gas Pressure |
0.7Mpa |
Power Supply |
based on customer needs |
| Equipped |
cylinders, stable pressure |
Force mode |
pneumatic screwdriver |
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no pollution
4) The heavy body ensures stability during use
