0~3000N Automatic Compression Strength Testing Machine ( Touch )

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: Calibration certificate

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: Plywood case

Delivery Time: 35 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1 unit

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                abrasion testing equipment, brake testing equipment


SKYLINE:	Automatic Compression Strength Testing Machine	Measuring Range:	0~3000N
Accuracy:	≤±1%	Resolution:	0.01N
Plate Parallelism:	≤0.05mm	Test Speed:	12.5±1mm/min

SKYLINE:	Automatic Compression Strength Testing Machine
Measuring Range:	0~3000N
Accuracy:	≤±1%
Resolution:	0.01N
Plate Parallelism:	≤0.05mm
Test Speed:	12.5±1mm/min

Product Description

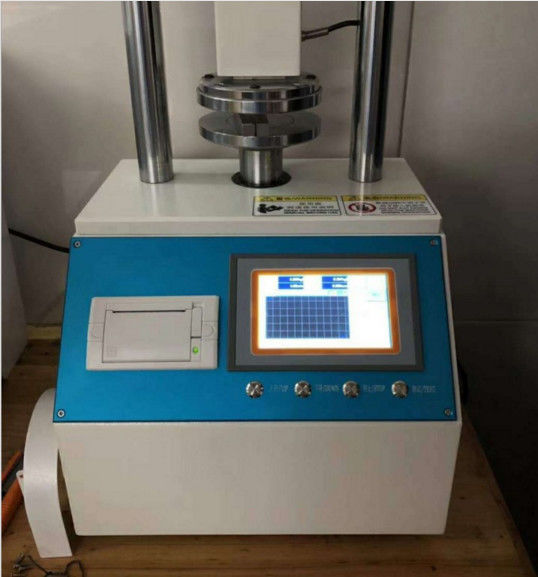

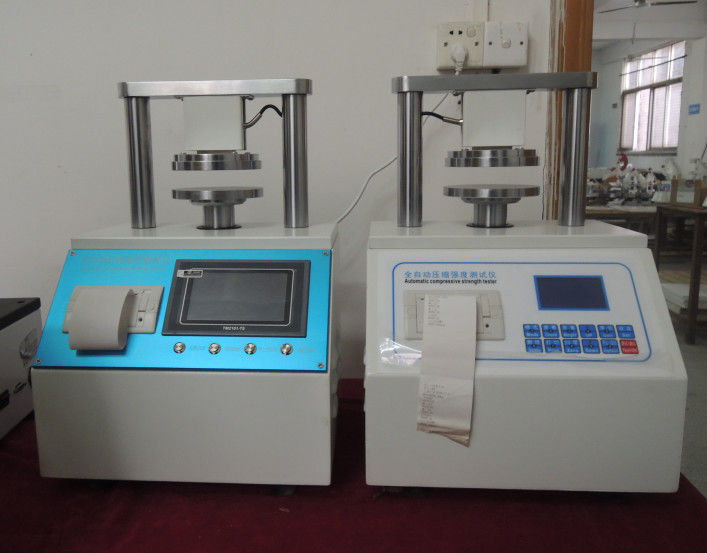

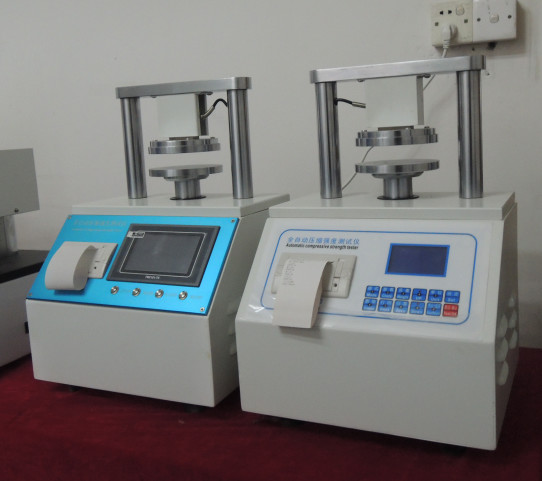

Automatic Compression Strength Testing Machine (Touch)

Product use
For paper packaging materials such as corrugated cardboard, a variety of paper quality tests, namely ring pressure (RCT), flat pressure (FCT), edge pressure (ECT), adhesion (PAT) and general compression (CMT) Testing is a test device that combines multiple functions. This machine is equipped with various fixture accessories to test the ring pressure strength of the base paper, the flat/edge pressure strength of the paperboard, and the bonding strength, so that the paper production enterprises can control the production cost and improve the product quality.

Technical parameters

1. Man-machine interface: 5-inch touch screen display, real-time with curve display force value changes
2. Printout: modular integrated thermal printer with curve printing
3. Working environment: temperature (20 ± 10) ° C, humidity <85%
4. Volume: 500 × 270 × 520mm (W × D × H)
5. Weight: 55kg
6. Power: 1 ∮, AC220V, 1.5A
7. Standard configuration: a vertical pressure clamp
8. Optional configuration: parallel sampler; ring pressure sampler ring pressure fixture; flat pressure fixture; glue strength fixture

Measurement range	0~3000N
Accuracy	≤±1%
Resolution	0.01N
Plate parallelism	≤0.05mm
Test speed	12.5 ± 1mm / min
The upper pressure plate diameter	124mm
Lower pressure plate diameter	127mm
Test height interval	55mm
Horsepower	1/4HP
