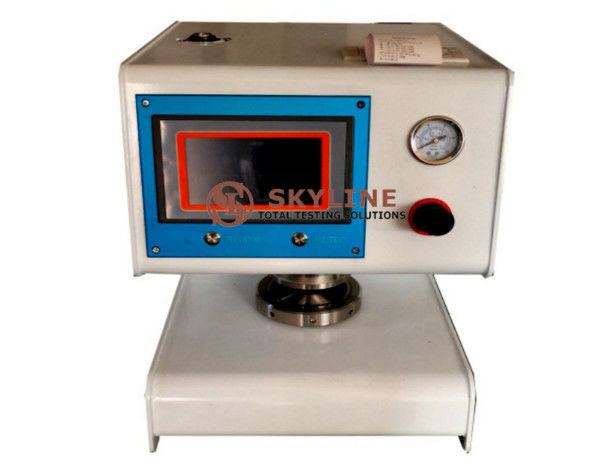

Automatic Burst Strength Testing Machine
Produt information
Fully automatic burst strength testing machine for the determination of various paperboard and single and multi-layer corrugated board, as well as for the resistance of non-paper materials such as silk and cotton.
Strength test.
Operation method: as long as the material is placed, it is automatically detected, automatic test, automatic oil pressure return and automatic calculation, storage test data, printing, instrument
Display with numbers and automatically print test results and data processing.
Features
1. After the cardboard is crushed, it will automatically stop and return to the initial position;
2. Fully automatic one-button operation;
3. Can store data at the same time;
4. With micro printing, the test results can be printed;
5. Equipped with emergency stop button to improve operation safety;
6. With pneumatic pressure gauge, monitor pressure at any time;
7. HD LCD display
8. The use of silicone oil instead of traditional glycerin refueling, good fluidity, not easy to block the oil circuit;
It does not contain water and will not cause corrosion of parts inside the machine and prolong the service life of the machine.
Environmental conditions for normal work
1. Room temperature: 20 ° C ± 10 ° C;
2. Power supply: AC220V±22V, 50Hz, maximum current 5A, the power supply should be reliably grounded.
If the power supply voltage fluctuates beyond the above range, a power regulator should be used;
3. The working environment is clean, no strong magnetic field and vibration source, and the worktable is stable and stable.
Technical parameter
| Power source |
AC220V±10% 2A 50Hz |
| Display value error |
±0.5% |
| Indication value variability |
≤ 0.5% |
| Resolution |
0.1 kPa |
| Measuring range |
(50 ~ 1400) kPa |
| Oil quantity |
(95±5)mL/min |
| Clamp holding capacity |
≤ 1200kPa (adjustable) |
| Air compressor |
pressure (0.6 ~ 0.7) MPa; displacement (0.02 ~ 0.3) m3 / min (non-standard); |
| Silicone film |
The pressure range is (30±5) kPa when the height is (9±0.2) mm; |
| System sealing |
pressure drop <10% FS within 1min |
| Human machine interface |
5-inch LCD screen or color touch screen, Chinese and English menu; |
| Printout |
Modular integrated thermal printer; |
| Communication output |
WAN port (optional) /RS232 (optional); |
| Working environment |
indoor temperature (20 ± 10 ) ° C; relative humidity < 85%; |
| Dimensions |
(400 × 350 × 500) mm (length × width × height) |
| Weight |
approx. 40 kg |
