0~3000N Automatic Compression Strength Testing Machine ( Button )

Name: 0~3000N Automatic Compression Strength Testing Machine ( Button )
Brand: SKYLINE
SKU: SKYLINE
Rating: 4.7 (191 reviews)

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: Calibration certificate

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: Plywood case

Delivery Time: 35 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1 unit

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                abrasion testing equipment, brake testing equipment


SKYLINE:	Automatic Compression Strength Testing Machine	Measuring Range:	0~3000N
Accuracy:	≤±1%	Resolution:	0.01N
Plate Parallelism:	≤0.05mm	Test Speed:	12.5±1mm/min

SKYLINE:	Automatic Compression Strength Testing Machine
Measuring Range:	0~3000N
Accuracy:	≤±1%
Resolution:	0.01N
Plate Parallelism:	≤0.05mm
Test Speed:	12.5±1mm/min

Product Description

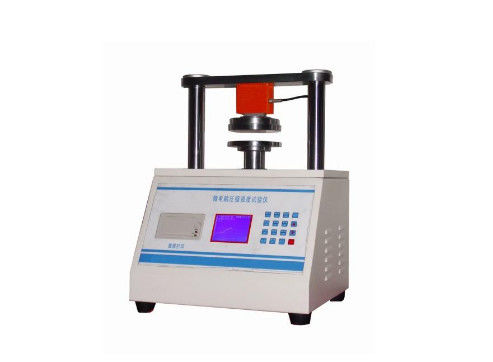

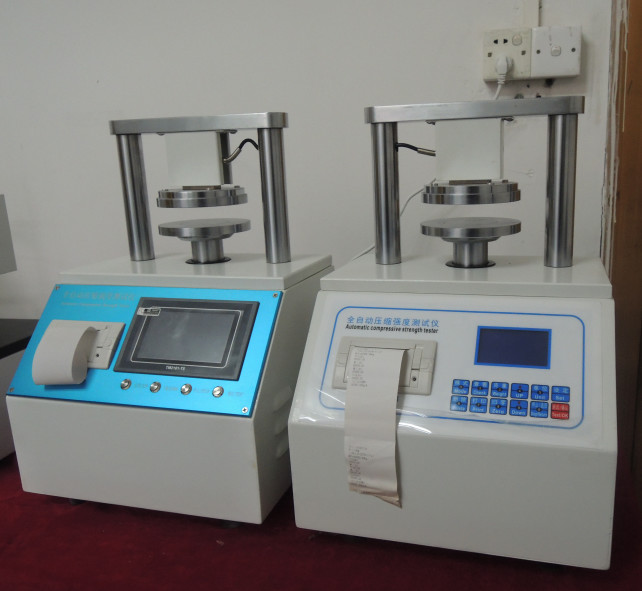

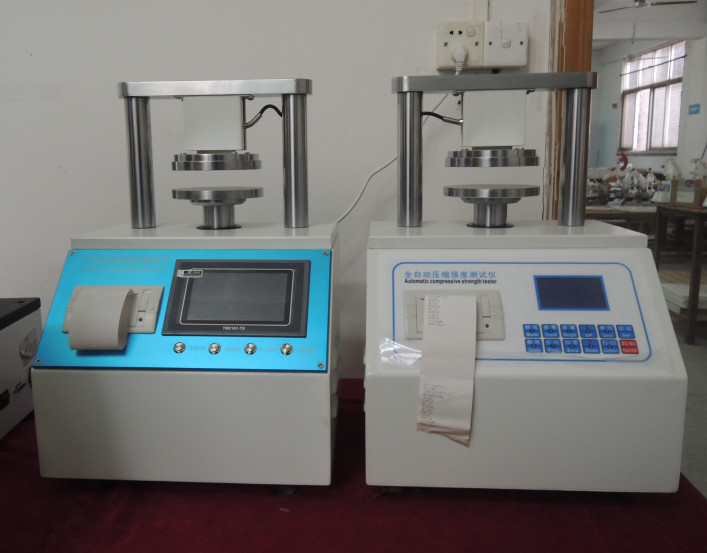

Automatic Compression Strength Testing Machine

Product usage
For paper packaging materials such as corrugated cardboard, a variety of paper quality tests, namely ring pressure (RCT), flat pressure (FCT), edge pressure (ECT), adhesion (PAT) and general compression (CMT) Testing is a test device that combines multiple functions. This machine is equipped with various fixture accessories to test the ring pressure strength of the base paper, the flat/edge pressure strength of the paperboard, and the bonding strength, so that the paper production enterprises can control the production cost and improve the product quality.

Technical parameters

Measuring range	0~3000N
Accuracy	≤±1%
Resolution	0.01N
Plate parallelism	≤0.05mm
Test speed	12.5±1mm/min
Upper platen diameter	124mm
Lower platen diameter	127mm
Test height interval	55mm
Man-machine interface	3.2 in 320*240 dot matrix liquid crystal display, real-time display of force value changes
Printout	modular integrated thermal printer
Working environment	temperature (20 ± 10) ° C, humidity <85%
