EN14764 2005 Frame Pedal Fatigue Testing Machine For Bicycle Frame Fatigue

Name: EN14764 2005 Frame Pedal Fatigue Testing Machine For Bicycle Frame Fatigue
Brand: SKYLINE
SKU: SKYLINE
Rating: 4.7 (141 reviews)

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: plywood case

Delivery Time: 15 working days

Payment Terms: Western Union, MoneyGram, T/T

Supply Ability: 1 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                abrasion testing equipment, physical testing equipment


SKYLINE:	Frame-Pedal-Fatigue-Testing-Machine	Capacity (kgf):	500
Test Force Value Accuracy:	±3%	Maximum Working Amplitude ( Mm ):	±100
Motion Detector:	LVDT Accuracy ±0 . 01 Mm	Power Source:	Servo Electric Cylinder Controllable
Frequency Range:	1HZ~15HZ Adjustable	Power Supply:	AC220V, 15A

SKYLINE:	Frame-Pedal-Fatigue-Testing-Machine
Capacity (kgf):	500
Test Force Value Accuracy:	±3%
Maximum Working Amplitude ( Mm ):	±100
Motion Detector:	LVDT Accuracy ±0 . 01 Mm
Power Source:	Servo Electric Cylinder Controllable
Frequency Range:	1HZ~15HZ Adjustable
Power Supply:	AC220V, 15A

Product Description

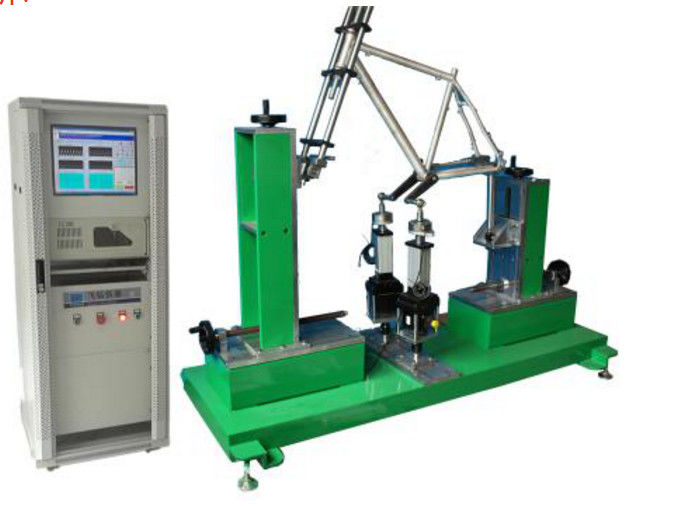

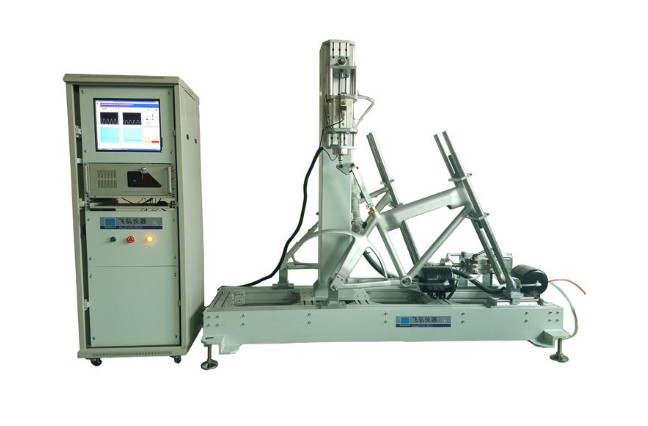

Frame Pedal Fatigue Testing Machine

Product usage

The frame fatigue dynamic fatigue life tester is designed for the bicycle frame fatigue resistance test standard, and the double electric cylinder is used for applying force. The bicycle frame is mounted on the test fixture and fixed, and a certain frequency, load and test times are applied thereto. The fatigue applied force is judged by checking the damage degree of the sample after the test.

Standard test

DIN79100, EN14764:2005, ISO4210:2014, JIS D9416-2004 BA, CNS B7063 CNS B7011, JIS D9301-2004

Technical parameters

Capacity (kgf)	500
Test force value accuracy	±3%
Maximum working amplitude ( mm )	±100
Motion detector	LVDT accuracy ±0 . 01 mm
Power source	Servo electric cylinder controllable
Frequency Range	1HZ~15HZ adjustable
Dimensions	1954590 (cm)
Weight (about)	160 (Kg)
Power supply	AC220V, 15A

EN14764 2005 Frame Pedal Fatigue Testing Machine For Bicycle Frame Fatigue 0
