ISO4210-2014 0—2000N Bicycle Wheel Brake Fatigue Testing Machine

Place of Origin China
Brand Name SKYLINE
Certification CE
Minimum Order Quantity 1 unit
Packaging Details plywood case
Delivery Time 15 working days
Payment Terms Western Union, , T/T
Supply Ability 1 pcs/ month
Product Details
SKYLINE: Bicycle Wheel Brake Fatigue Testing Machine Load: 0—2000N (direct Pressure Type)
Obstacle Angle: 45 Degree Obstacle Height: 2mm/2, 3mm/2 Or 5mm/2
Speed: 0.05~5000m/h Pallet Lifting Range: 50~200mm
Speed Unit: KM/H, M/S Control Box Size: 950*450*330mm
Highlight:

abrasion testing equipment

,

physical testing equipment
Product Description

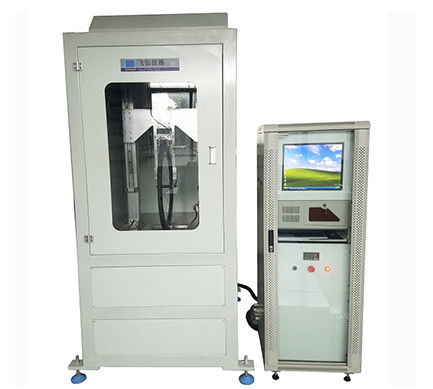

Bicycle Wheel Brake Fatigue Testing Machine



Product manual

The test machine drives the measured rim with a large revolver as the driving wheel, and can perform the "brake dry and wet state test", "dynamic walking test", "brake performance test", "wheel static pressure test" and "deflection test". With industrial computer control, you can print test results with a micro printer. The application of the load is carried out by using a weight-added direct-pressure type to more realistically simulate its test environment and state;



Test standard

EN14764:2005, ISO4210-2014



Technical parameters

 Load  0—2000N (direct pressure type)
 Obstacle height  2mm/2, 3mm/2 or 5mm/2
 Obstacle angle  45 degree
 Direction of operation  Support positive and negative
 Speed  0.05~5000m/h
 Pallet lifting range  50~200mm
 Speed unit  KM/H, M/S
 Control box size  950*450*330mm
 Main box size (WxDxH)  2.9*1.2*2.5m
 Weight  About 320kg
