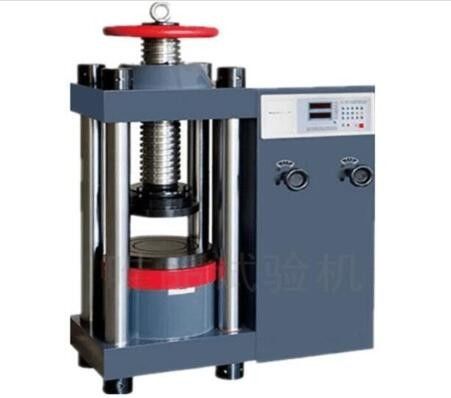

Lab Testing Equipment Air Brick Compression Tester , Concrete Pressure Testing Machine

Place of Origin China
Brand Name SKYLINE
Certification calibration certificate
Model Number SL-T2000
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details Plywood case
Delivery Time 15 working days
Payment Terms Western Union, T/T, , L/C
Supply Ability 2 pcs/ month
Product Details
SKYLINE: Concrete Pressure Testing Machine Maximum Test Force: 2000KN
Test Force Measurement Range: 10%-100% Piston Stroke: 80mm
Motor Power: 0.75KW Total Weight: 800KG
Highlight:

abrasion testing equipment

,

physical testing equipment
Product Description

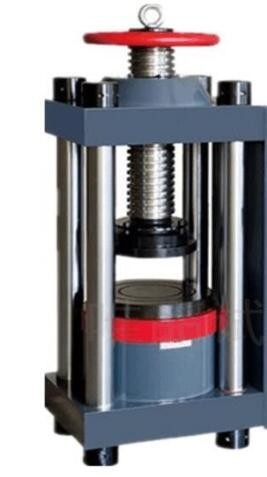

Air Brick Compression Testing Equipment , Concrete Pressure Testing Machine



Description

This machine adopts the structure of the host and the hydraulic system, which is compact and exquisite. Using hydraulic loading and electronic measuring force, it has the function of charging number rate, peak holding and so on, and is equipped with a micro printer.



Hydraulic system

The hydraulic oil in the tank goes through the motor to drive the high pressure pump into the oil road, and flows back to the oil valve and enters the oil cylinder. The measuring instrument collects the analysis data through the sensor and shows the time force value. The tester can control the flow rate by sending the oil valve to realize the speed of the test force.



Dynamometric System

1.Manual adjustment and return to oil valve, simple and flexible operation.

2.Maximum load peak retention function.

3.Dynamic display function with loading rate.

4.Random test report with date of tast, number, failure load, compressive strength, etc.



Safety protection device:When the test force is more than 3% of the maximum test force, the overload protection and the pump motor stop.



Main performance technical indicators

 Maximum test force (kN)  2000
 Test force measurement range  10%-100%
 The relative error of the test force indication value  Less than 1% of the indication value
 Upper and lower plate spacing (mm)  300
 Piston stroke (mm)  80
 Column spacing (mm)  260
 Pressure plate size (mm)  up to 225, below 300
 Mainframe size (mm)  850*550*1450
 Motor power (kW)  0.75
 Total weight (kg)  800



Factory standard configuration list

 Test machine  1 units (including motor, oil pump, return oil valve)
 Dynamometer  1, on the host, containing a micro printer
 Pressure sensor  1, avionics test
 Up and down platen  1 sets
 Instruction certificate / packing list  1 sets



Lab Testing Equipment Air Brick Compression Tester , Concrete Pressure Testing Machine





Tag:Concrete pressure testing machine, digital display pressure testing machine
