Lab Testing Equipment Intelligent Computer Top Pressure Tester / Bottle Top Pressure Tester

Name: Lab Testing Equipment Intelligent Computer Top Pressure Tester / Bottle Top Pressure Tester
Brand: SKYLINE
SKU: SKYLINE
Rating: 4.8 (178 reviews)

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: plywood case

Delivery Time: 5 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 5 pcs / month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                abrasion testing equipment, brake testing equipment


SKYLINE:	Intelligent Computer Top Pressure Tester	Sample Height:	≤ 600mm
Displacement Resolution:	0.01mm	Stroke:	600mm Or 1000mm (optional)
Power Supply:	220V, 50Hz	Sample Diameter:	≤150 Mm

SKYLINE:	Intelligent Computer Top Pressure Tester
Sample Height:	≤ 600mm
Displacement Resolution:	0.01mm
Stroke:	600mm Or 1000mm (optional)
Power Supply:	220V, 50Hz
Sample Diameter:	≤150 Mm

Product Description

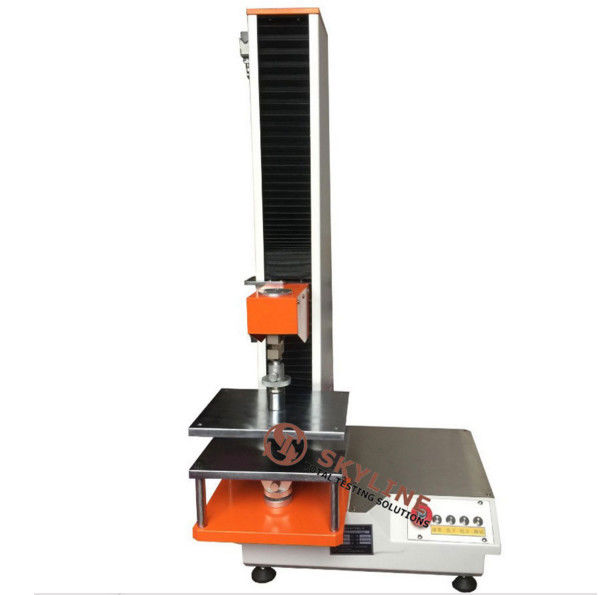

Intelligent Computer Top Pressure Tester/Top Pressure Strength Meter

Product description
The intelligent computer top pressure tester is a bottle top pressure testing machine, which can be used for vertical load bearing strength of water bottles, plastic bottles, cans, composite cans, PET bottles, beverage bottles, purified water bottles, mineral water bottles, oil bottles, cola bottles, etc. Compressive strength, constant pressure testing instrument for pressure resistance of the bottle body. It is also suitable for the tensile test of rubber, light industrial textiles, composite materials, wire and cable, mechanical parts and other industries.

Product specifications

Sample height	≤ 600mm
The maximum test force	500N 1000N 2000N 5000N (optional)
The range	2% -100% of the maximum force;
Test force accuracy	better than ± 1%
Displacement resolution	0.01mm;
Displacement measurement accuracy	better than ± 1%;
Stroke	600mm or 1000mm (optional)
Displacement speed control range	1mm/min~500mm/min
Displacement speed control accuracy	better than ±1%
Testing machine level	level 1
Deformation indication error	≤ ± (50 + 0.15L)
Testing machine size	530 * 266 * 1450
Power supply	220V, 50Hz
Weight	100KG
Sample diameter	≤150 mm

Lab Testing Equipment Intelligent Computer Top Pressure Tester / Bottle Top Pressure Tester 0
