Lab Testing Equipment Bending / Crease Stiffness Cardboard Stiffness Tester

Place of Origin CHINA
Brand Name SKYLINE
Certification Calibration certificate
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details Plywood case
Delivery Time 35 work days
Payment Terms T/T, Western Union,
Supply Ability 1 unit
Product Details
SKYLINE: Bending Stiffness Tester Measuring Range: (15~10000) MN.m
Measuring Thickness: (0-2) Mm Indication Variability: ≤1%
Load Arm Length: 200 ° ± 20 ° / Min Weight: 15kg
Highlight:

abrasion testing equipment

,

physical testing equipment
Product Description

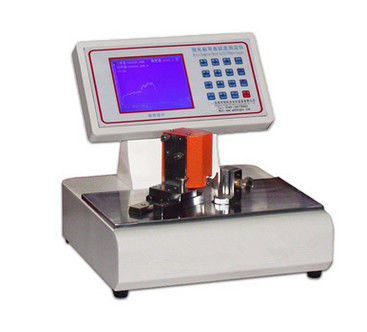

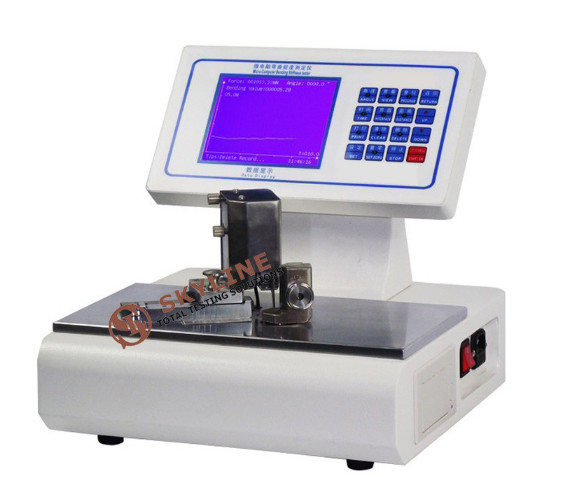

Bending Stiffness Tester / Crease Stiffness Cardboard Stiffness Tester



Product use overview
Bending stiffness tester / crease stiffness tester The computer stiffness tester is a multi-functional intelligent computer stiffness tester for measuring small thickness
Bending stiffness of 2mm paper, cardboard and other strength sheet-like non-metallic materials.

 Features
The instrument test angle can be arbitrarily set between (1 and 20) °, and the test time can be arbitrarily set within the specified range (3s to 30s). Self-sufficient
The zero-test function is used to display the stiffness and time curve in real time. The touch screen is simple and convenient to operate. This instrument has various parameters included in the standard.
Test, display, memory, statistics and printing functions to provide scientific data analysis for cardboard bending stiffness detection

Technical parameters

 Measuring range  (15~10000) mN.m
 Measuring thickness  (0-2) mm
 Resolution  0.1mN
 Indication variability  ≤1%
 Bending length  (50/25/20/15/10/5) ±0.1mm
 Bending angle  (±7.5o or ±15o) ±0.3 o (1~90 o adjustable)
 Load arm length  200 ° ± 20 ° / min
 Printout  modular one-piece thermal printer
 Data display  5.7in LCD display with graph display
 Printout  Thermal Printer
 Working environment  temperature (20 ± 10) ° C, humidity <85%
 Dimensions  340*330m*340mm
 Weight  15kg
