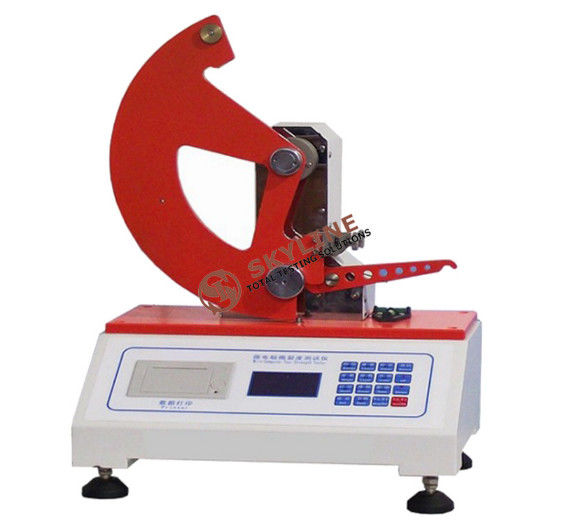

ASTM D903, Lab Testing Equipment Plastic Film Tear Paper Tear Strength Tester

Name: ASTM D903, Lab Testing Equipment Plastic Film Tear Paper Tear Strength Tester
Brand: SKYLINE
SKU: SKYLINE
Rating: 4.7 (144 reviews)

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: Calibration certificate

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: Plywood case

Delivery Time: 35 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1 unit

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                abrasion testing equipment, physical testing equipment


SKYLINE:	Tear Strength Tester	Measuring Range:	10mN ~ 16000mN
Resolution:	0.1mN	Accuracy:	±1.0%
Tear Arm:	104 Mm ±1 Mm	Initial Tear Angle:	27.5 ° ± 0.5 °

SKYLINE:	Tear Strength Tester
Measuring Range:	10mN ~ 16000mN
Resolution:	0.1mN
Accuracy:	±1.0%
Tear Arm:	104 Mm ±1 Mm
Initial Tear Angle:	27.5 ° ± 0.5 °

Product Description

Tear Tester Paper Tear Strength Tester

Product information
The tear strength tester can mainly measure the tensile force, tear, peeling, adhesion of various materials... resistance properties. Print test date, time and
The display value set by the display. The tear strength tester can be equipped with a variety of fixtures and elongation test devices, or assembled according to customer needs.
Suitable for various food packaging, textile, rubber, plastic, synthetic leather and other industries, materials and products for tensile, peeling, tearing and other tests

Features
1. It consists of pendulum bracket, fan-shaped pendulum body, pendulum shaft, fixed fixture, movable fixture, weight gain weight, punching knife and pendulum release mechanism;
2, The pointer shows that the customer can get the test result through the pointer;
3, Easy to operate, easy to learn;
4, Mainly composed of load cell, transmitter, microprocessor, load-driven machinery, etc., high test accuracy

Standard
ASTM D903, CNS-11888, JIS K6854, PSTC-7

Technical Parameters

Measuring range	10mN ~ 16000mN
Resolution	0.1mN
Accuracy	±1.0%
Tear arm	104 mm ±1 mm
Initial tear angle	27.5 ° ± 0.5 °
Distance between the paper holders	2.8 mm ±0.3mm
Sample cut length	20 mm ± 0.5 mm
Tearing distance	43±0.5mm
Paper size	25*15mm
Fixture	pneumatic clamp
Man-machine interface	3.2in LCD display, real-time display test data
Printout	Thermal Printer
Working environment temperature	(0~35) °C, humidity <85%
Dimensions	510400365mm
Working environment	temperature (20 ± 10) ° C, humidity <85%
Power suppl	AC220V 50Hz
