Lab Testing Equipment (50 ~ 30000) N 1.2m Compressive Strength Testing Machine

Name: Lab Testing Equipment (50 ~ 30000) N 1.2m Compressive Strength Testing Machine
Brand: SKYLINE
SKU: SL-P28
Rating: 4.9 (130 reviews)

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: Calibration certificate

Model Number: SL-P28

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: Plywood case

Delivery Time: 35 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1 unit

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                physical testing equipment, brake testing equipment


SKYLINE:	Compressive Strength Testing Machine	Resolution:	1N
Measurement Range:	(50 ~ 30000) N	Deformation Error:	≤ ±1 Mm
Pressing Plate Area:	1000 × 1200 Mm	Working Stroke:	(40 ~ 1200) Mm

SKYLINE:	Compressive Strength Testing Machine
Resolution:	1N
Measurement Range:	(50 ~ 30000) N
Deformation Error:	≤ ±1 Mm
Pressing Plate Area:	1000 × 1200 Mm
Working Stroke:	(40 ~ 1200) Mm

Product Description

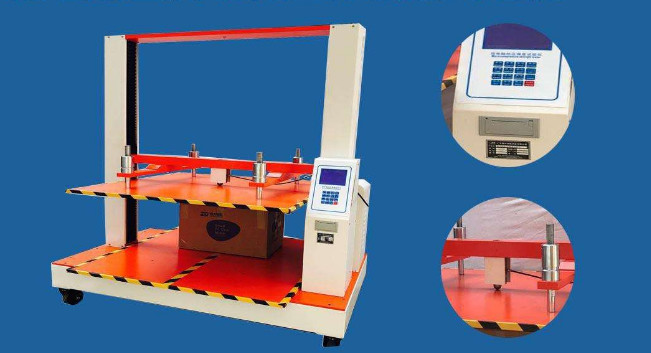

Compressive Strength Testing Machine

Technical parameters

Power source	AC220V±10% 5A 50Hz
Display value error	±1%
Indication value variability	≤ 1%
Resolution	1N
Measurement range	(50 ~ 30000) N
Deformation error	≤ ±1 mm
Pressing plate area	1000 × 1200 mm
The parallelism of the slab	≤ 2 mm
Working stroke	40 ~ 1200) mm
Test speed	(10 ± 1) mm / min (5 ~ 100mm / min can be set)
Return speed	(5 ~ 100) mm / min;
Human machine interface	5-inch touch screen with curve display, Chinese and English menu
Communication output	RS232 (standard) / USB (optional)
Working environment	indoor temperature (20 ± 10 ) ° C; relative humidity < 85%
Dimensions	(1036 × 1200 × 1919) mm (length × width × height)
Printout	modular integrated thermal printer
Weight	about 500 kg
