DIN3415 SATRA TM 123 Lab Testing Equipment Velcro Fatigue Testing Machine

Place of Origin China
Brand Name SKYLINE
Certification calibration certificate
Model Number SL-L30
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details Plywood case
Delivery Time 15 working days
Payment Terms Western Union, T/T, , L/C
Supply Ability 2 pcs/ month
Product Details
SKYLINE: Velcro Fatigue Testing Machine Large Roller Diameter: 162.5±0.5mm
Small Roller Diameter: 160.0±0.5mm Roller Width: 80mm
Controller: PLC Control System Touch Screen Display Roller Speed: 60±5cpm/72±5cpm Can Be Set
Power: AC220V50HZ Weight: 55kg
Highlight:

physical testing equipment

,

brake testing equipment
Product Description

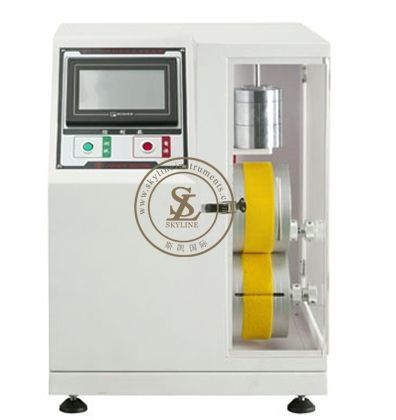

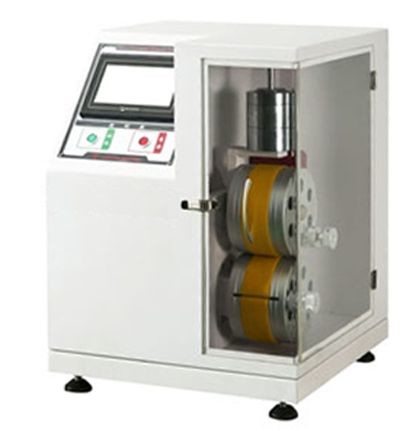

SL-L30 Velcro Fatigue Testing Machine


Use
The machine repeatedly peels and attaches the hook and loop fastener, so after a certain number of times, the test piece is cut into 75*20mm, and then the test piece is pressed by the weight of the roller to make it evenly fit, and then 4. With the optional tensile testing machine, the adhesion AS and the bonding strength PA were measured, which has the function of power-off memory.



Technical parameters

 Large roller diameter  162.5±0.5mm
 Small roller diameter  160.0±0.5mm
 Roller width  80mm
 Roller speed  60±5cpm/72±5cpm can be set
 Controller  PLC control system touch screen display
 Volume  45*55*57cm
 Power  AC220V50HZ
 Weight  55kg



Standards compliant
ISO22776, DIN3415 SATRA TM 123, ISO 22777
