Luggage Drop Test Machine
Use

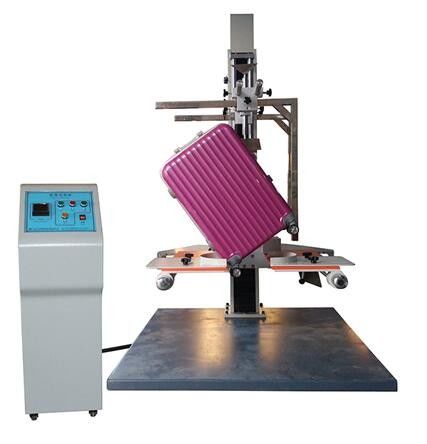

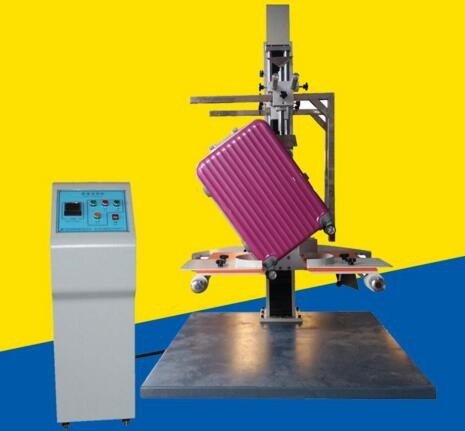

This series of drop test machine adopts double column direction, spring buffer and height scale indication, and the work is stable and reliable. It is equipped with a professional drop clamp for luggage, which can achieve edge, face and corner drop. During the process of moving or transporting, the product may be damaged and the internal product may be damaged. If the damage is prevented in advance, the machine can be used to test the expected result, so as to obtain the best solution, so as to minimize the transportation process. loss.
According to the standard
QBT 2921-2007 luggage drop test method, QBT 2155-2010 travel luggage.
Product specifications
| Drop height |
450~1500mm |
| Display mode |
height ruler |
| Maximum weight of test piece |
60kg |
| Maximum size of test piece |
(L × W × H) 800 × 1000 × 800mm |
| Drop panel area |
(W × L) 1200 × 1400mm |
| Single wing area |
(W × L) 350 × 760mm |
| Power supply |
1∮, AC220V, 50Hz, 1/2P |
| Weight (approx.) |
about 420kg |
| Dimensions (L × W × H) |
1400 × 1200 × 2140mm |
Applications
-
Luggage and suitcase manufacturers – Quality control and product development testing
-
Travel bag producers – Drop resistance validation for soft-sided and hard-sided bags
-
E-commerce sellers and retailers – Pre-shipment durability verification to minimize returns
-
Testing laboratories and inspection agencies – Third-party compliance testing
-
Logistics and shipping companies – Packaging and handling impact assessment
-
Research and development departments – New product material and structural optimization
Frequently Asked Questions
Q: What is this equipment used for?
This machine tests the drop resistance of luggage, suitcases, and travel bags by simulating free-fall impacts that occur during handling and transportation, helping manufacturers identify durability issues before products reach customers.
Q: How does the drop test machine work?
The machine uses a double-column guide system with a spring buffer. The specimen is secured by a professional drop clamp, raised to the desired height (450–1500 mm), and released to achieve edge, face, or corner drops onto the impact panel.
Q: What standards does it comply with?
It complies with QB/T 2921-2007 (luggage drop test method) and QB/T 2155-2010 (travel luggage standards), which are the industry benchmarks for luggage drop testing in China.
Q: What types of luggage can be tested?
The machine accommodates specimens up to 60 kg in weight and 800 × 1000 × 800 mm in size, covering most travel luggage, suitcases, carry-on bags, and soft-sided or hard-sided bags.
Q: Can it perform different types of drops?
Yes. The professional drop clamp allows for edge drops, face drops, and corner drops, providing comprehensive impact assessment from multiple angles.
Q: What are the space and power requirements?
The machine measures 1400 × 1200 × 2140 mm and weighs approximately 420 kg. It requires a standard 1∮, AC220V, 50Hz, 1/2P power supply.
