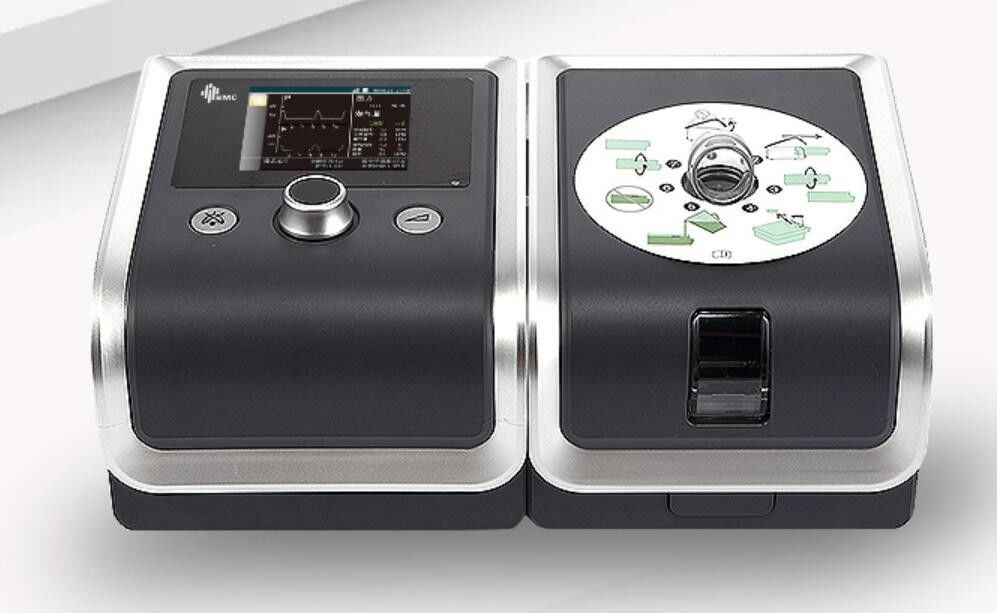

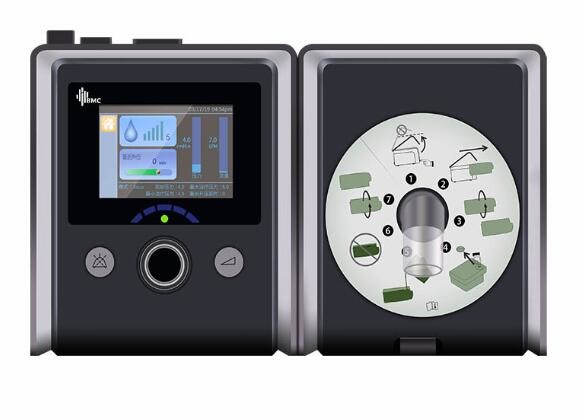

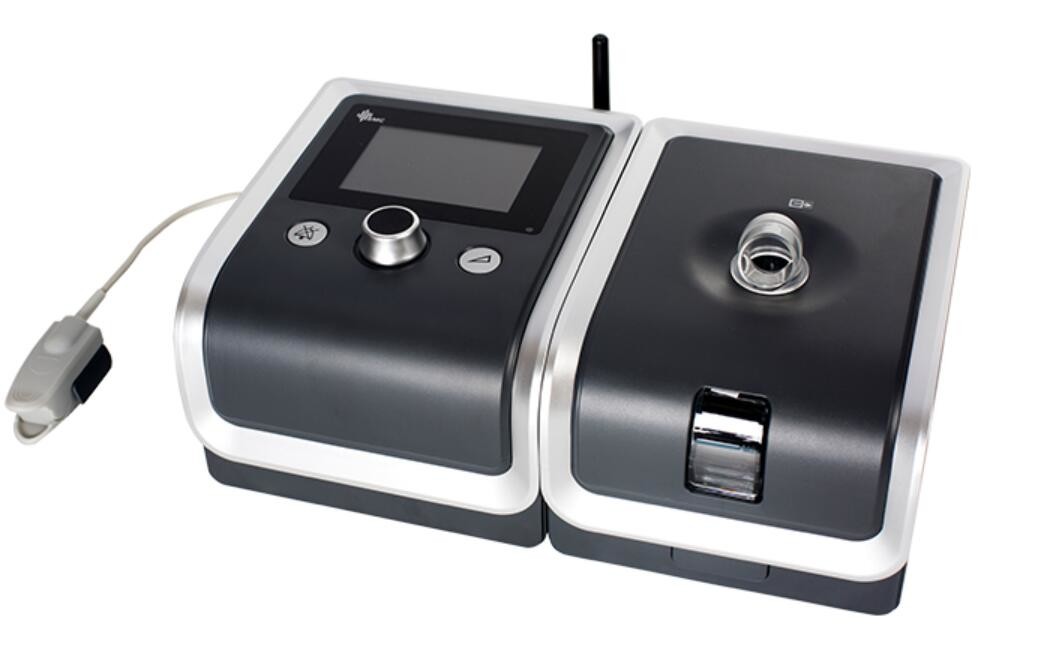

CPAP BiPAP S/T Non Invasive Respiratory Machine For ICU

Name: CPAP BiPAP S/T Non Invasive Respiratory Machine For ICU
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: Y-30T
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: BMC

Certification: CE

Model Number: Y-30T

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiated

Packaging Details: CARTON BOX

Delivery Time: 10 working days

Payment Terms: T/T

Supply Ability: 3000 unit/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                BiPAP Non Invasive Respiratory Machine, CPAP Non Invasive Respiratory Machine, ICU Portable Medical Ventilator


Pressure Range:	4-30cm H2O(±0.5cm H2O)	Ventilator:	For ICU In Breathing Machines
Brand:	BMC	Ventilation Mode:	CPAP,S,S/T,T
After-sale Service:	Online Technical Support	Type:	Electronic Control

Pressure Range:	4-30cm H2O(±0.5cm H2O)
Ventilator:	For ICU In Breathing Machines
Brand:	BMC
Ventilation Mode:	CPAP,S,S/T,T
After-sale Service:	Online Technical Support
Type:	Electronic Control

Product Description

CPAP BiPAP S/T Non invasive respiratory machine portable medical ventilator

Y series BPAP Systems are Bi-level PAP (Bi-level Positive Airway Pressure) devices intended to
provide non-invasive ventilation for patients with Obstructive Sleep Apnea (OSA) and Respiratory
Insufficiency. They are intended for adult patients by prescription in the home or hospital/institutional
environment. With its Target Tidal Volume function and other excellent comfort features and effective
performance, it offers each patient personalized ventilation support.

Model Comparison

Y-30T

IPAP: 4 -30 hPa
EPAP: 4 -25 hPa
C PAP m ode: 4 -20 hPa

3.5-inch

CPAP, S, T, S/T

Specification

Name	Y-30T non invasive ventilators
Pressure range	4-30cm H2O(±0.5cm H2O)
Pressure accuracy	±0.5cm H2O
Delayed boost	0-60min, set the division interval 5min
Initial pressure	4cm H2O treatment pressure / respiratory pressure setting
Therapeutic pressure	4-20cm H2O (in CPAP mode)
Target tidal volume	150ml - 1500ml, on / off
Maximum suction pressure	4-30cm H2O, (can be set when the target tidal volume funct
Minimum suction pressure	4-30cm H2O (not higher than suction pressure)can be set
Inspiratory phase pressure	4-30cm H2O
Expiratory pressure	4-30cm H2O
Inspiratory time	0.3-3.0s
backup rate	On / off, default 10

Ramp
The ramp time ranges from 0 to 60 minutes

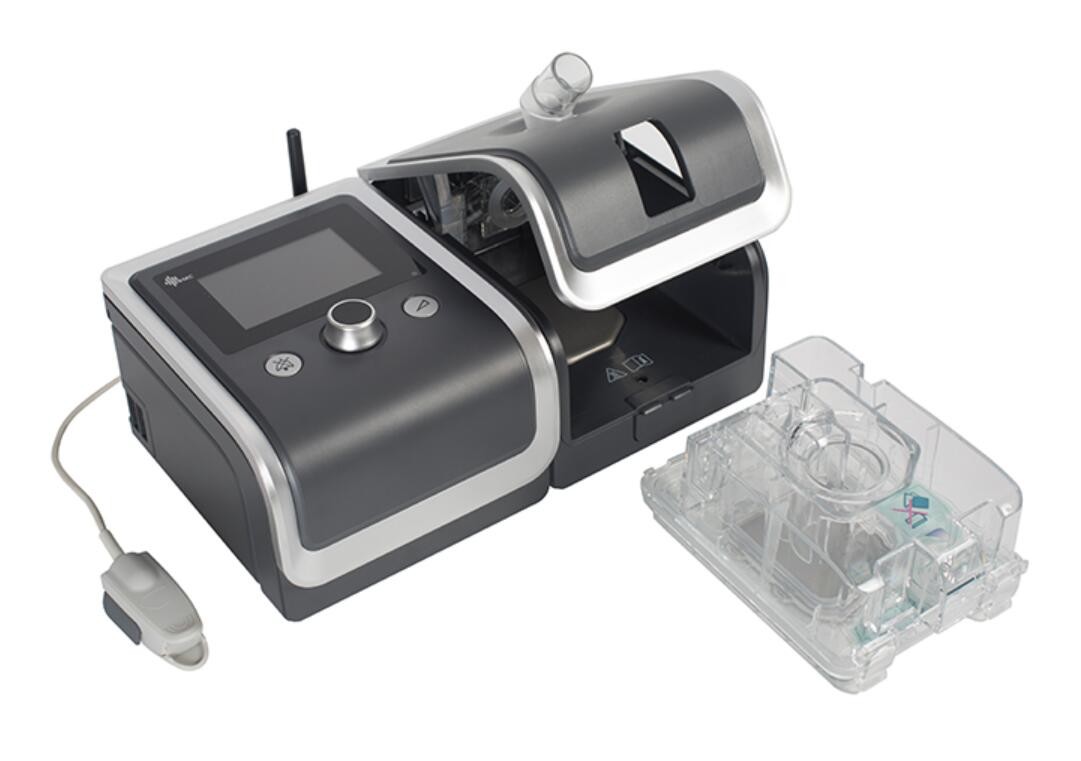

Humidifier
Humidifier Settings: off, 1 to 5 (95°F to 167°F
/ 35°C to 75°C)
Humidifier Output: No less than 10 mg H2O/L
SpO 2
Range: 0 to 100%
Pulse Rate
Range: 40 to 240 BPM
Sound Pressure Level
< 30 dB, when the device is working at the pressure of 10 hPa
Storage
SD card can record patient data and fault information
AC Power Consumption
100 - 240 V AC, 50/60 Hz, Max 2 A
Key Parameters
Target Vt: On/ Off
150~1500 mL
Reslex: Patient, Off, 1~3
I Sens.: 1~8
E Sens.: 1~8
Res Rate: 3~40 BPM
Ti: 0.3-3.0s
Rise Time: 1~4
