ISO9772 Lab Testing Equipment Horizontal And Vertical Flammability Tester With MCU Control

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-FL082
Minimum Order Quantity 1 unit
Price negotiated
Packaging Details Plywood case
Delivery Time 15 working days
Payment Terms T/T, L/C, Western Union
Supply Ability 1 unit/ month
Product Details
SKYLINE: Foam Plastics Horizontal And Vertical Flammability Chamber Standards: ISO 845：1985
Application: Foam Plastics Burner Angel: 0-45 Degree
Flame Height: 15mm-100mm Bensun Diameter: 9.5mm±0.3mm
Chamber Volume: 0.5m3 Power Supply: 220V±10％ 50HZ
Highlight:

abrasion testing equipment

,

physical testing equipment
Product Description

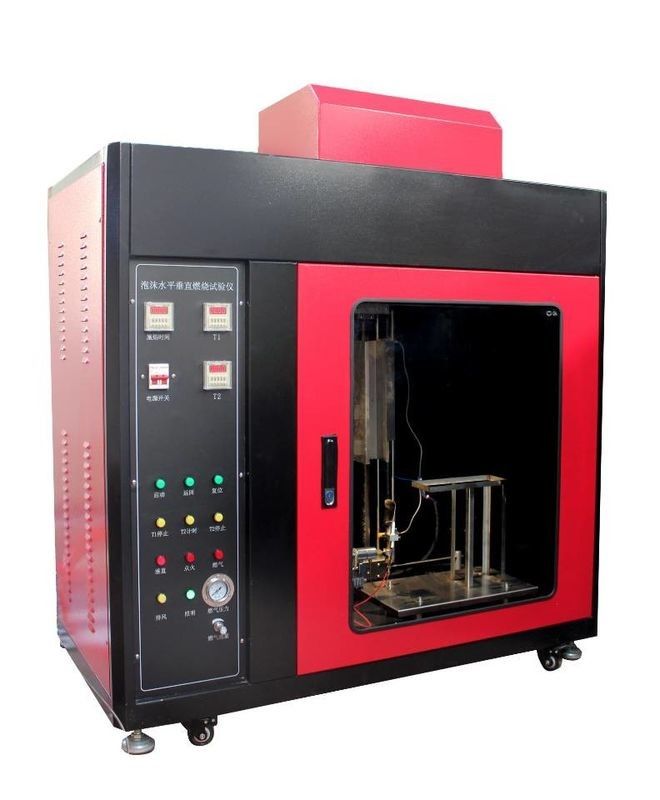

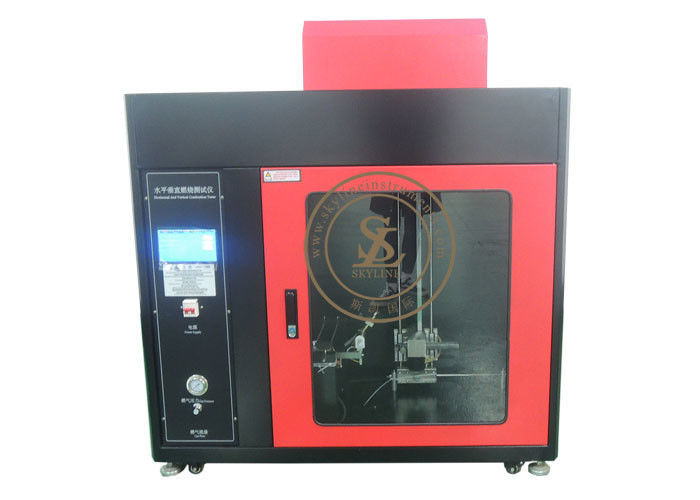

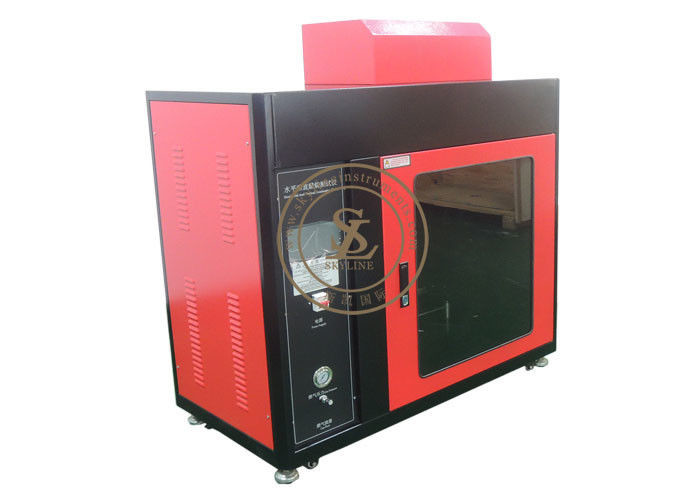

Foam Plastics Horizontal and Vertical Flammability Tester with MCU Control



Application

Suitable for laboratory conditions under the ISO 845: 1985 measured by the density of less than 250kg / m3 of small plastic samples under small flames in the horizontal combustion performance.



Standards

ISO9772,ISO 97738



Specifications

 Ambient temperature  -10 ℃ ~ 30 ℃
 Relative humidity  ≤85%
 Power supply voltage and power  220V ± 10% 50HZ power less than 100W
 MCU control  read the automatic timing
 Bunsen burner diameter  9.5mm ± 0.3mm Bunsen burner can be tilted in the range of 0-45 °
 Bunsen light blue flame height  15mm-100mm can be adjusted, with a flame height scale
 Sample folder vertical adjustment distance  ≤ 100mm sample holder horizontal direction adjustment distance: ≤ 70mm
 Horizontal sample holder  can be placed 90 ° textile samples folder (optional)
 Bunsen burner automatic ignition time  any set
 Gas source  industrial methane gas, the concentration of not less than 98%, calorific value (37 +1) MJ / m³, need to bring the regulator and pressure gauge to ensure uniform airflow. Other sources of heat (37 + 1) MJ / m³ mixed gas source or calorific value of (94 +2) MJ / m³ of propane gas can also get similar results. In the event of controversy, industrial grade methane gas should be selected
 Overall dimensions  width 1160mm × depth 600mm × height 1310 (including feet) mm
 Combustion test area volume  > 0.5 cubic, long * wide * high about 900mm × 590mm × 1050mm, background black, background illumination ≤ 20Lux



Accessories

1. Power cord 1

2. Igniter only 1
3. Horizontal pattern rack 1
4. Vertical sample rack 1
5. Air supply pipe 1.5
6. Spare scale only 1
