EN1888-2018 Children Products Baby Stroller Handle Durability Tester

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-BST017
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details Plywood case
Delivery Time 35 working days
Payment Terms Western Union, T/T,
Supply Ability 2 pcs/ month
Product Details
SKYLINE: Baby Stroller Handle Durability Tester Number Of Samples: 1 / Times
Loading Force Value: 450N Front And Rear Wheels Off The Ground: 120mm+/-10mm Adjustable
Gas Source: 7kgf/cm^2 Stable Air Supply Volume (WxDxH): 140x122x185cm
Weight (approx.): ≈280Kg Power Supply: 1∮ AC 220V 50Hz 5A
Highlight:

physical testing equipment

,

brake testing equipment
Product Description

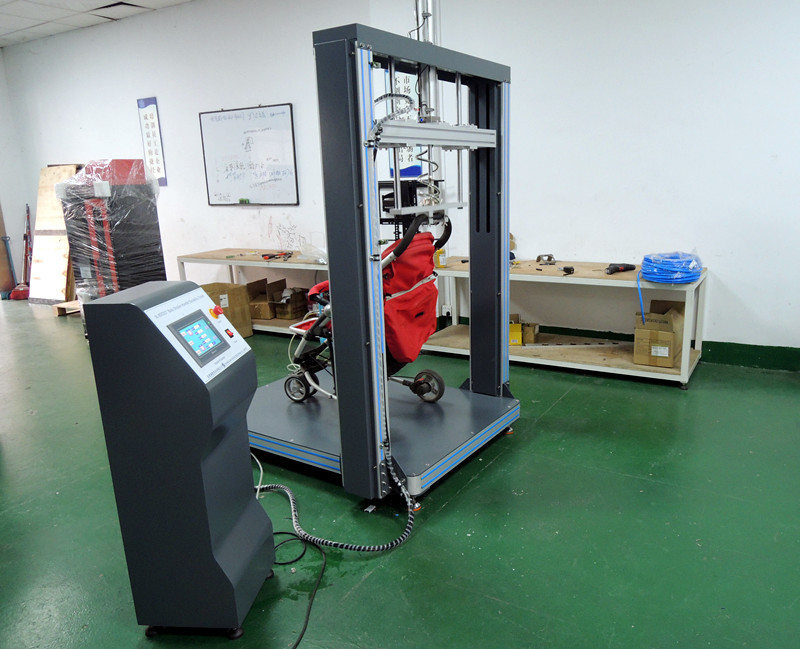

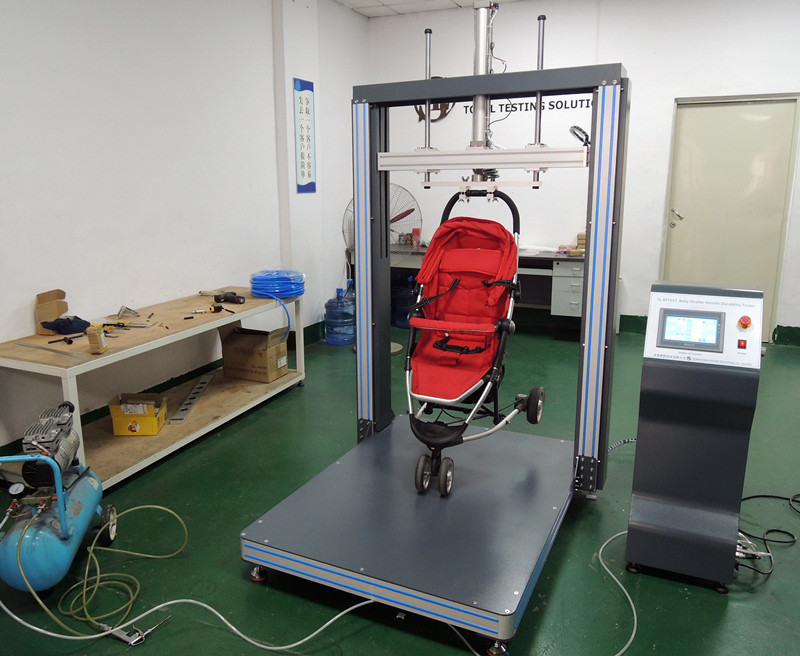

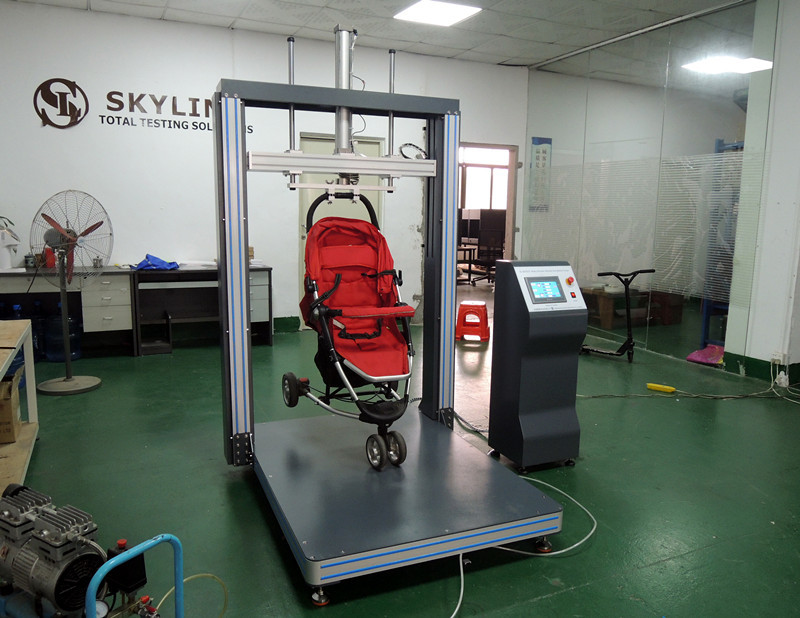

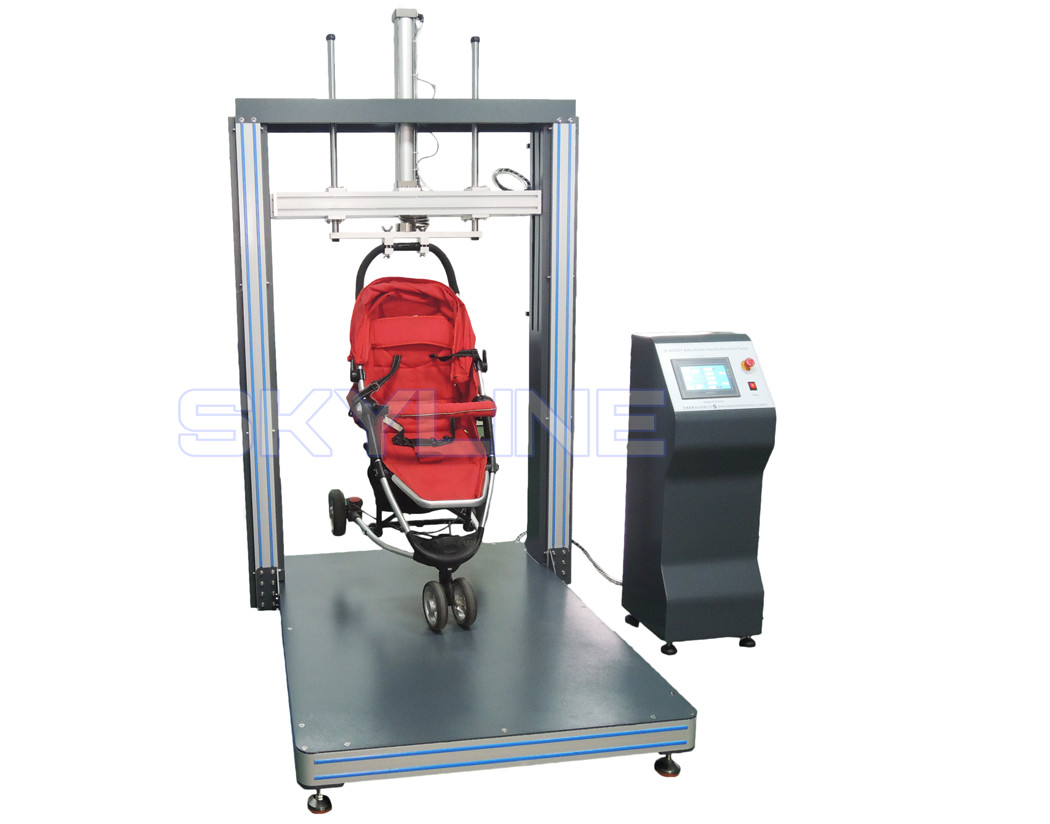

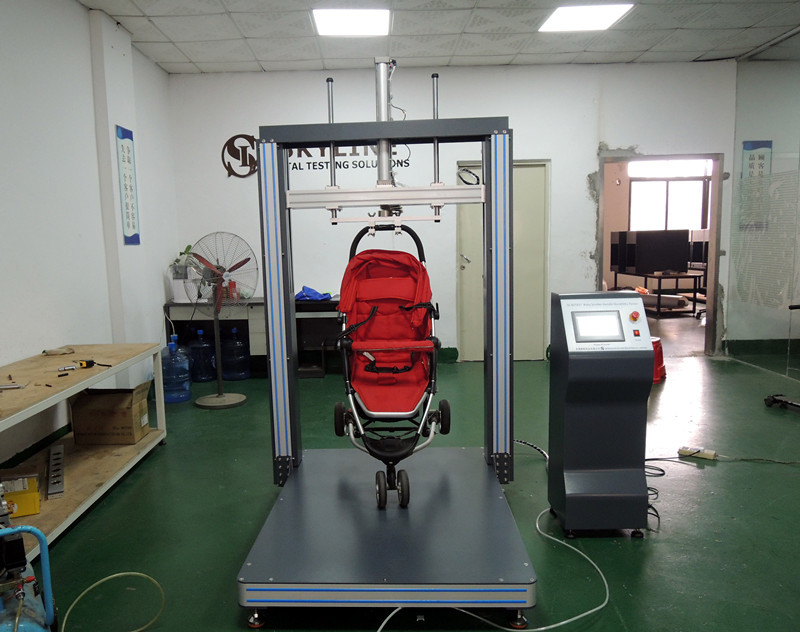

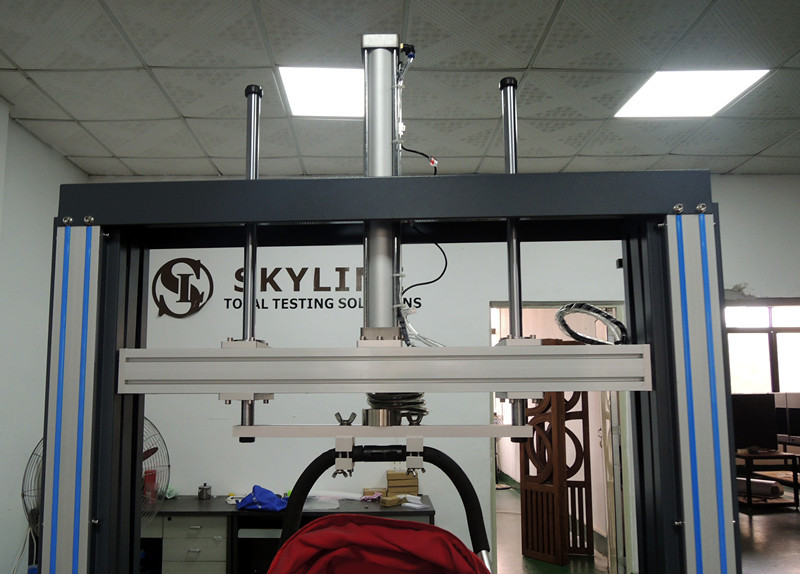

EN1888-2018 Baby Stroller Handle Durability Tester



Use

This tester is suitable for the durability test of the push-pull stroller when simulating over obstacles.



Principle

Put the model baby in the platform, when lifting: make the rear wheel of the platform 120mm +/- 10mm away from the area, when pressing down: make the front wheel of the platform 120mm +/- 10mm off the ground, at a speed of 15 ± 1 times / MIN After the continuous reciprocating test 10,000 times, visually inspect the car for damage.



According to the standard

This tester is made according to the requirements of section 8.10.6.2.2 of EN-1888-2012.



Specifications

 Sample  Stroller
 Number of samples  1 / times
 Loading force value  450N
 Front and rear wheels off the ground  120mm+/-10mm Adjustable
 Volume (WxDxH)  Host :140x122x185cm
 Weight (approx.)  ≈280Kg
 Gas source  7kgf/cm^2 Stable air supply
 Power supply  1∮ AC 220V 50Hz 5A



Please review video of the Baby Stroller Handle Durability Tester operation as below link:

https://youtu.be/wl8pR4T82RQ

Baby Stroller Handle Durability Tester.pdf
