Automotive Interior Horizontal Flammability Test Chamber , Flammability Testing Equipment
Product introduction

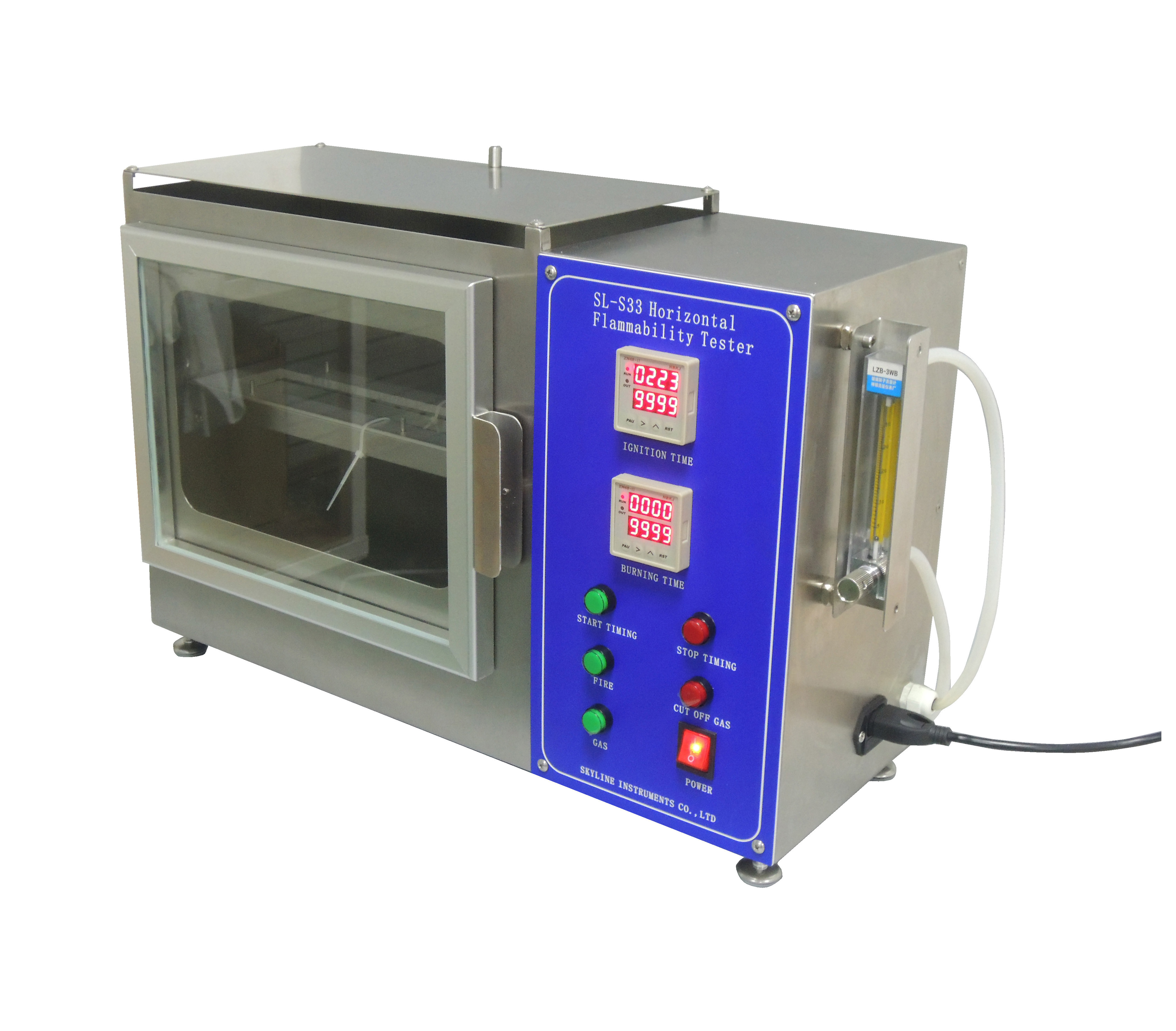

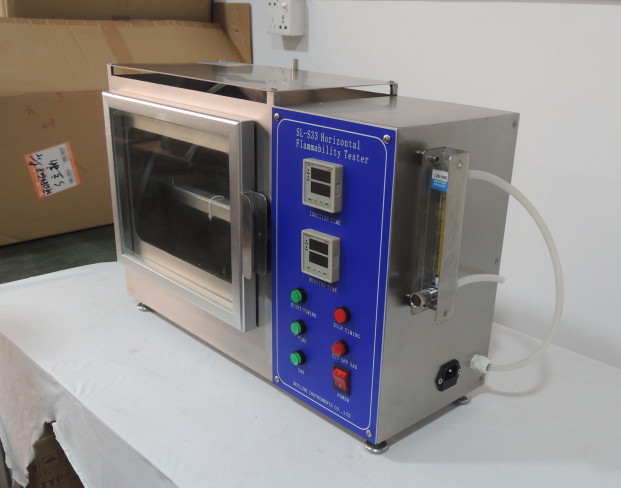

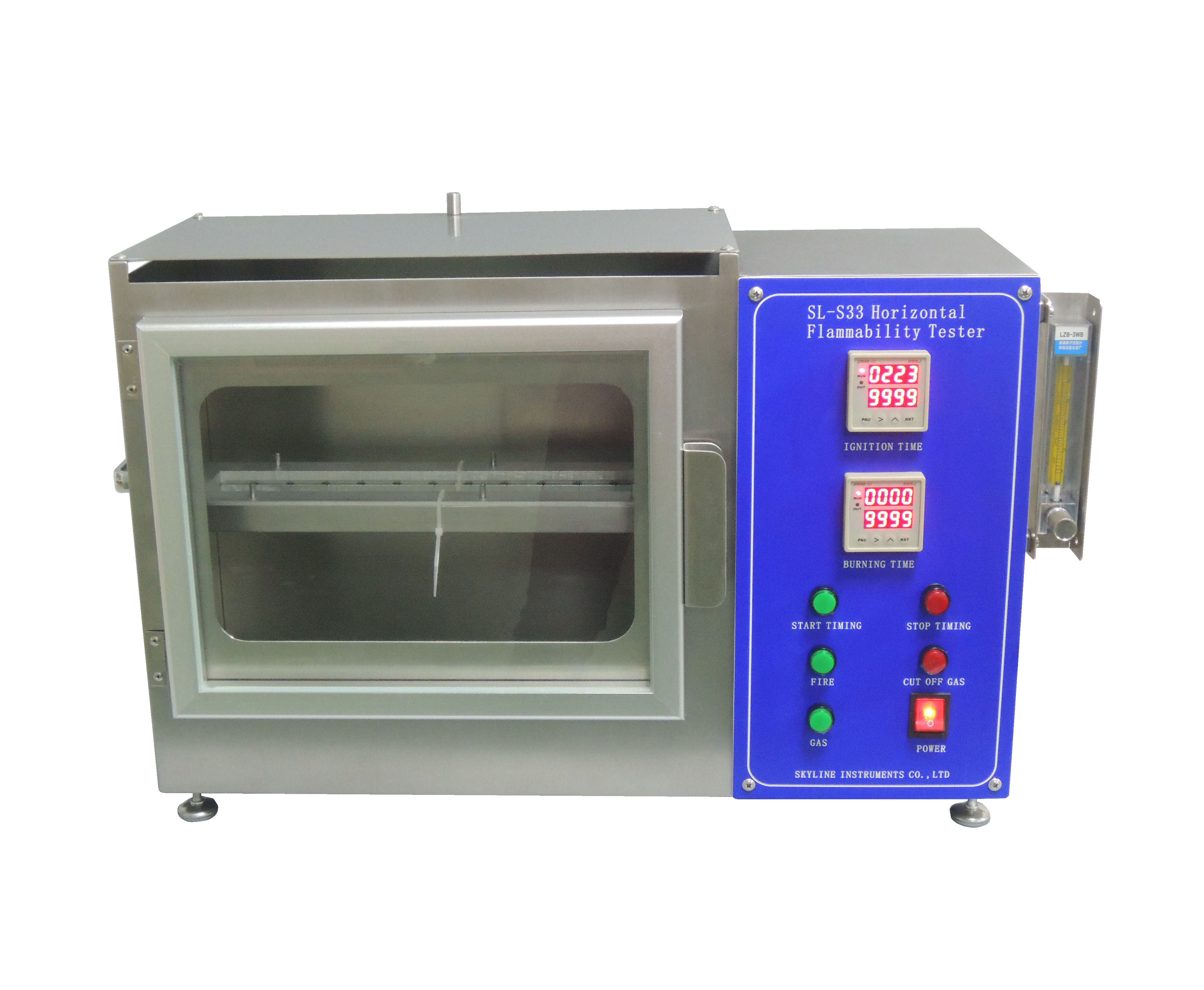

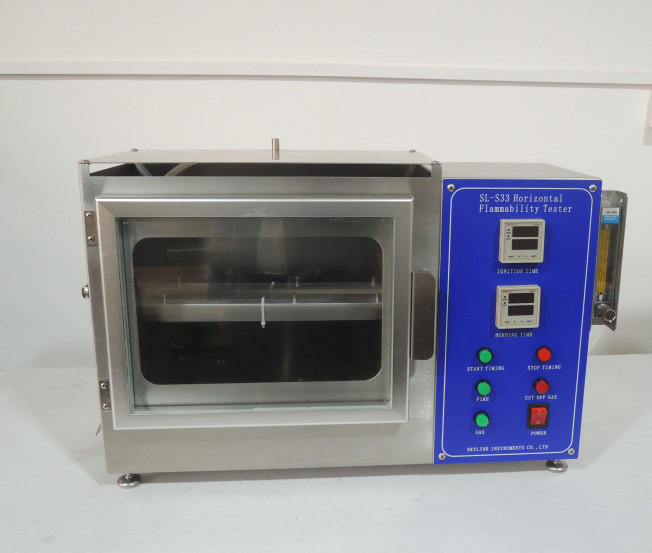

The instrument consists of two parts: the control box and the combustion box. The sample is clamped flat by the clamp and placed on the bracket of the combustion box. The flame is ignited by the control box for a certain time, and the flame is extinguished. Observe the flame spread of the sample, measure the time it takes for the flame to spread a certain distance on the sample, calculate the spread speed of the flame, and evaluate the flame resistance of the sample.
This instrument is suitable for the following standards:FMVSS 302
Main technical parameter
| Burning box inner size |
381mm×203mm×356mm |
| Instrument weight |
13.5kg |
| Fire nozzle diameter |
9.5mm |
| Flame height |
38mm±2 |

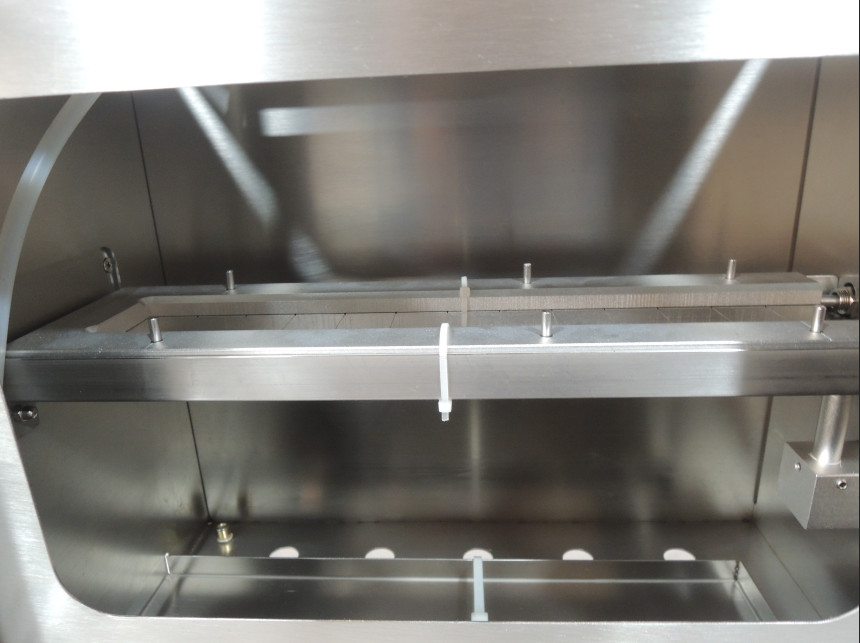

| Specimen clamp |
360×100mm |
| Inner frame size |
330×50mm |
| Lower specimen clamp |
Wire spacing is 25mm |
| Mark Line |
Distance from the sample ignition at 38mm, 292mm |
| Nozzle Top Distance specimen surface |
19mm |
| Test environment |
The temperature is 15 ~ 30 ° C, the relative humidity is 30% ~ 80% |
Maintenance and maintenance
1. The working environment of the instrument is standard laboratory degree, pay attention to waterproof and moisture proof.
2. To make the test thickness, please take the gas filling out of the gas filling device.
3. After use, you must cut off the power and clean the instrument.
4. Please turn off the power when not in use for a long time.
5. If there is a malfunction, please contact the factory for repair. It is not recommended to repair it yourself.
Horizontal Flammability Tester operation video link:
https://youtu.be/lsOBffM3P-A
